Installation Method:
1. Place the cable channel board in the area where wiring is needed, connect each piece together, put the cables inside, and close the cover board to set the path for the cable channel board,
or choose a smooth floor in exhibition venues, etc. There are one-slot, two-slot, three-slot, four-slot, and five-slot cable channel boards; for example, if there are two wires,
choose the two-slot cable channel board.
2. The installation is quite convenient, usually using standard block combinations and internal expansion bolts, securely fastening it to the ground with screws, ensuring stable and reliable installation that won't loosen upon vehicle impact.
Features and Uses:
The cable channel board is used for stage lighting wiring, shopping mall wiring, engineering departments, exhibition companies, and power companies for construction wiring, community road wiring,
it is an essential power supply safety protection device for many stages, studios, outdoor performance venues, and cultural groups, ensuring safety during wiring.
Taiyuan Cable Cover Board Taiyuan Workshop Cable Cover Board Taiyuan Ground Cable Cover Board
Type A Straight Board:
Medium Two-Slot Specification: 1000*450*70mm Slot Diameter: 50*50mm Weight: 13 kg
Two-Slot Specification: 800*300*45mm Slot Diameter: 30*25mm Weight: 7 kg
Medium Two-Slot Specification: 800*430*65mm Slot Diameter: 50*50mm Weight: 12.5 kg
Large Two-Slot Specification: 660*580*105mm Slot Diameter: 90*90mm Weight: 19 kg
Three-Slot Specification: 1000*345*50mm Slot Diameter: 30*30mm Weight: 12 kg
Three-Slot Specification: 800*430*50mm Slot Diameter: 30*30mm Weight: 12 kg
Large Three-Slot Specification: 800*520*85mm Slot Diameter: 65*65mm Weight: 14.5 kg
Four-Slot Specification: 800*500*65mm Slot Diameter: 50*50mm Weight: 16.5 kg
Five-Slot Specification: 800*500*50mm Slot Diameter: 30*30mm Weight: 12.5 kg
All Type A straight boards can be configured with 90° corners and three-way corners.
Taiyuan Cable Cover Board Taiyuan Workshop Cable Cover Board Taiyuan Ground Cable Cover Board

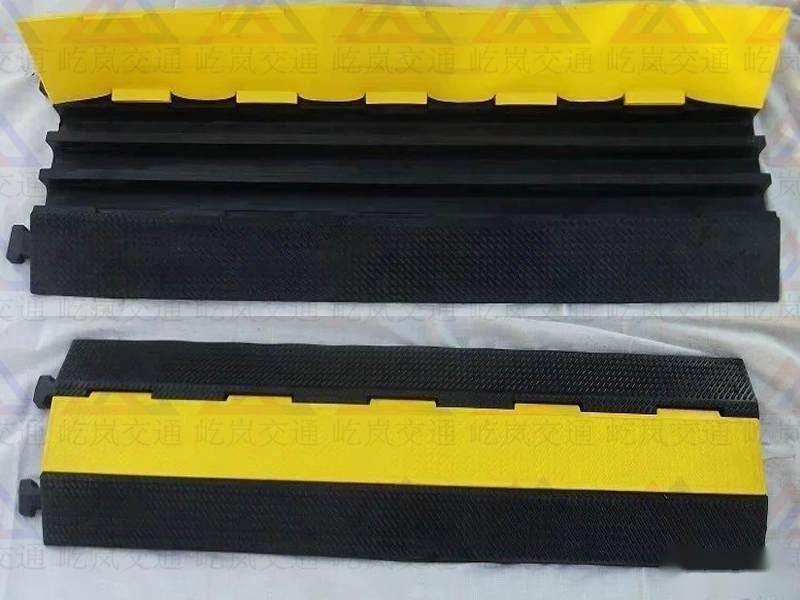

Name: Two-Slot Cable Routing Board
Specification: 660*580*105mm
Slot Diameter: 90*90mm
Weight: 19 kg
Product Description:
1. Eye-catching safety warning signs that comply with road traffic facility marking regulations.
2. Advanced polyurethane (UV curing) process.
3. Special rubber stage performance cable channel board with unique grip design at the bottom, no need to damage the ground for installation.
4. High insulation level, high breakdown voltage of 7500v, high load capacity of 65 tons.
5. High compressive load capacity, suitable for heavy trucks, forklifts, generator trucks, broadcasting trucks, container trucks.
6. Durable, proprietary Durathane polyurethane cast and formed.
7. Dual function, can be used as a speed bump and also as a rubber stage performance cable channel board for wiring.
