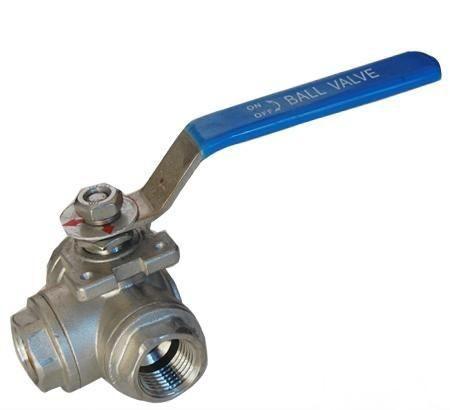

【Product Name: Internal Thread Three-Way Ball Valve】
【Product Model: Q15F-16P】
The valve body of Henan Far East Q15F-16P internal thread three-way ball valve is made of stainless steel such as 304 and 316. It has a reasonable structure and an aesthetic design. The valve seat adopts an elastic sealing structure, allowing for easy operation and reliable sealing.
【Product Introduction】:
Henan Far East Q15F-16P internal thread three-way ball valve is an L-type three-way switching ball valve, which can flexibly control the flow direction of the medium in the pipeline. It is suitable for media such as water, oil, gas, and certain corrosive liquids at a pressure of 2.5MPa.
【Working Principle】:
The internal thread three-way ball valve is a valve that can switch the flow direction of the medium and perform diversion or mixing of the medium. It is divided into L-type and T-type. The L-type three-way ball valve is suitable for switching the flow direction of the medium, allowing communication between two perpendicular channels. The T-type three-way ball valve is suitable for the diversion, merging, or flow direction switching of the medium.
【Product Features】:
1. The internal passage of the valve body is smooth and even, allowing for the transport of viscous fluids, slurries, and solid particles.
2. It can be configured with various driving mechanisms such as pneumatic and electric, enabling long-distance control and automated operation.
3. One valve serves multiple purposes, any port can be used as an inlet without leakage; the three-way can be made into both L-type and T-type ports.
4. Due to the good self-lubricating properties of materials such as polytetrafluoroethylene, the friction with the ball is low, resulting in a long service life for the ball valve.
