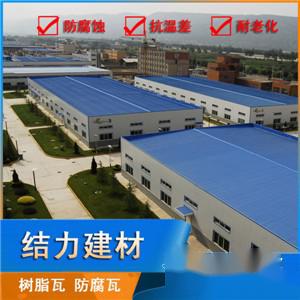

Synthetic Resin Tile manufacturer Laizhou Jieligong Trading Co., Ltd. has an advanced inspection and testing center, which can independently complete raw material inspection upon arrival, pre-production raw material inspection, post-production product inspection, and product factory inspection, ensuring high-quality synthetic resin tiles for users. Jieligong factory resin tiles can be selected based on customer's roof requirements, either using ordinary trapezoidal synthetic resin tiles or wave synthetic resin tiles suitable for curved factory roofs. The characteristic of Jieligong anti-corrosion tiles is the large utilization rate of the entire area, which can reduce costs for users. When installing factory resin tiles, horizontal overlap of at least one wave should be ensured, vertical overlap should be 20-25cm, and for roofs with a slope angle less than 20 degrees, it is recommended that the vertical dimension should not be less than 40cm. In areas with high winds, two waves should be overlapped horizontally, the vertical overlap should be at least 40cm, and nails should be recommended at a rate of 6 sets per square meter. The price of synthetic resin tiles is determined by its specifications, materials, and thickness, and online prices are for reference only. Customization is now available according to customers' different needs, with nationwide direct sales. Welcome to contact 0535-3490 877 13589772720 Manager Qin
Corrosion-resistant, good waterproof performance
"Jieligong" synthetic resin tiles can resist long-term corrosion by various chemicals such as acids, alkalis, and salts. Immersion test in salt, alkali, and 60% of various acids for 24 hours has no chemical effect. The high weather resistance resin selected for "Jieligong" synthetic resin tiles is dense and non-absorbent, with no water seepage through micropores. The large single sheet area, fewer roof seams, and tight joints at overlaps contribute to excellent waterproof performance.
Impact resistance, low-temperature resistance
"Jieligong" synthetic resin tile physical experiments: A one-kilogram steel ball dropped freely from a height of 2 meters onto the tile surface without causing cracks. The tile withstood impact from falling balls 10 times under low temperature without damage. After 10 freeze-thaw cycles, there were no hollowing, bubbling, peeling, or cracking.
Long-lasting color
"Jieligong" synthetic resin tiles use ultra-high weather-resistant engineering resin produced by French company ATOGLAS as the surface material. It exhibits exceptional durability in natural environments, maintaining color stability even after long-term exposure to UV rays, moisture, high and low temperatures. Outdoor use results from areas with intense sunlight exposure such as Arizona and Florida have shown that it can ensure a △E ≤ 5 color difference for 10 years.
Insulation and soundproofing
The thermal conductivity of "Jieligong" synthetic resin tiles is 0.325w/m.k, approximately one-third that of clay tiles, one-fifth of 10mm thick cement tiles, and one-two-thousandth of 0.5mm thick color steel tiles. Without considering additional insulation layers, "Jieligong" synthetic resin tiles still provide ideal insulation performance. Acoustic testing shows that "Jieligong" synthetic resin tiles can effectively absorb external influences such as heavy rain, hail, and strong winds.
Stable volume, load-bearing capacity
The expansion coefficient of "Jieligong" synthetic resin tiles is 4.93 × 10 -5 (per 1/ oC), and the tile design has bidirectional stretching properties to accommodate temperature changes, ensuring geometric stability. "Jieligong" synthetic resin tiles have excellent load-bearing performance, passing tests by the Shandong Building Materials and Components Quality Supervision Station with no damage under 150kg evenly distributed load at 750mm support intervals.
Lightweight, difficult to burn
"Jieligong" synthetic resin tiles weigh 6kg per square meter, classified as lightweight structural material. It effectively reduces the load on buildings, saving on structural material usage and construction costs. The main skeleton material of "Jieligong" synthetic resin tiles is polyvinyl chloride resin, which exhibits flame-retardant properties. Tested by the national firefighting department, the fire resistance of the product reaches Class B1.
Environmentally friendly and energy-saving
"Jieligong" synthetic resin tiles are certified by the "China Environmental Labeling Product Certification." Evaluated by the National Construction Ministry's Science and Technology Development Center, the product is environmentally friendly, energy-efficient, and recyclable, making it a "green and energy-saving" new building material product that is actively promoted and supported in China.
