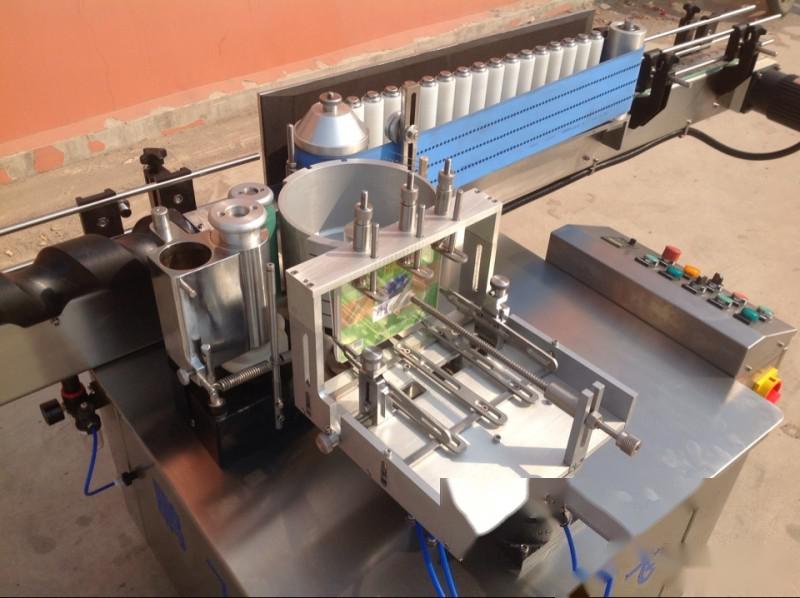

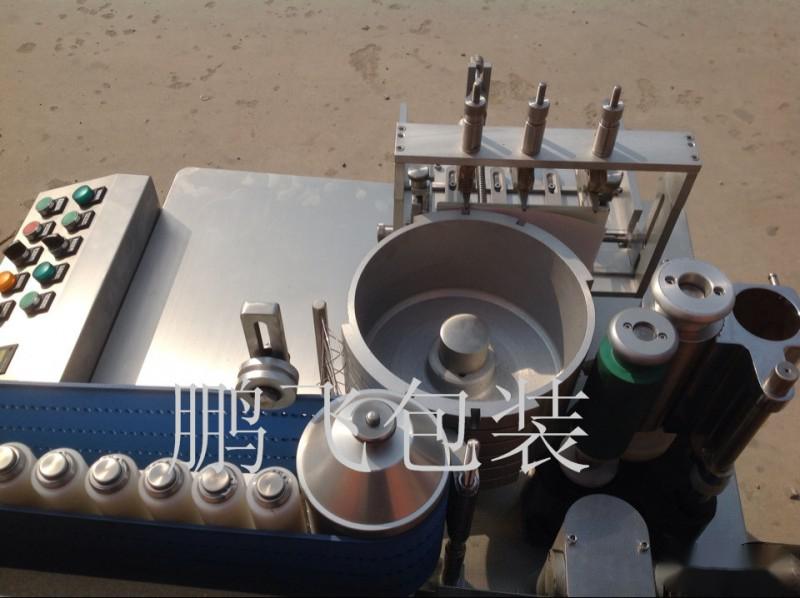

Supply Linear Glue Applicator Labeling Machine

The linear glue labeler is widely used in industries such as chemicals, beverages, food, alcohol, seasonings, canned goods, pharmaceuticals, and detergents. It can complete the application of single labels around or half-labels on cylindrical (or conical) containers! Main performance description: The main frame of the machine is welded from carbon steel, treated for rust prevention, and then coated with a layer of blue paint. The outer surface is covered with an AISI304 stainless steel tabletop. The gearbox uses long-lasting grease lubrication. The machine speed adjustment utilizes frequency conversion speed regulation, allowing for continuous and smooth speed adjustments. All axes are made from AISI304 stainless steel material. The machine is equipped with a no-bottle no-labeling device and a glue thickness adjustment device. All height adjustment parts of the machine are made from AISI304 stainless steel material. The machine consists of a spiral feeding part, labeling station, glue application part, vacuum labeling part, and label pressing part. Main technical parameters: Applicable bottle and label sizes: Bottle diameter 40-100mm Label paper width: 40-320mm Label paper height: 30-140mm (if exceeded, can be processed separately according to actual dimensions) Label paper weight: 80-110 grams/square meter; texture requirement is horizontal lines. Labeling error: Height direction ±1mm; symmetrical error ≤2mm (material error not included). The specific matching dimensions of the labeling machine are based on the samples provided by the buyer. The height and width of the label box are adjustable, with an adjustment range of 25mm. Total power of the machine: 1.2Kw 380v. Overall dimensions: Length 2.5m × Width 0.9m × Height 1.1m (including chain length). Net weight: approximately 450Kg. Operating speed: The maximum labeling speed can reach 6000 bottles/hour. Equipment manufacturer: Yantai Pengfei Packaging Machinery Co., Ltd. Contact person: Zhang Xueyuan Phone: 15553698686 Landline: 0535-6828102
