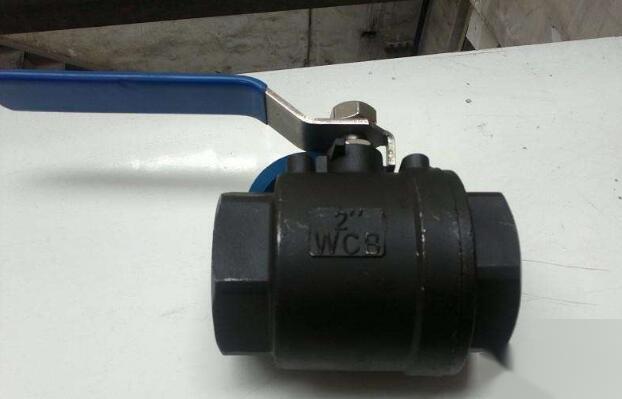

Q11F-1000WOG Two-Piece Internal Thread Ball Valve Product Application
Q11F Type Internal ThreadCarbon SteelBall Valve is suitable for PN1.0~4.0MPa, working temperature -29~150℃ (seal ring made of reinforced PTFE) or -29~300℃ (seal ring made of copolymer), applicable for various pipelines, used for cutting off or connecting media in the pipeline. Different materials can be selected to be suitable for various media such as water, steam, oil products, nitric acid, acetic acid, etc.
Q11F-1000WOG Two-Piece Internal Thread Ball Valve Main Component Materials
Applicable Medium |
Model |
Valve Body |
Ball, Valve Stem |
Handle |
Seal Ring |
Gasket, Packing |
Water, Steam, Oil |
Q11F-16C, Q11F-25C, Q11F-40C, Q11F-64C |
A105, 45 |
1Cr18/1Cr18Ni9Ti |
Stainless Steel SS304 |
PTFE, Reinforced PTFE, VUILUK PTFE, Copolymer PPL |
PTFE, Copolymer PPL |
Nitric Acid |
Q11F-16P, Q11F-25P, Q11F-40P, Q11F-64P |
SS304/1Cr18Ni19Ti |
SS304/1Cr18Ni9Ti |
|||
Acetic Acid |
Q11F-16R, Q11F-25R, Q11F-40R, Q11F-64R |
SS316/Cr18Ni12Mo2Ti |
SS316/1Cr18Ni12Mo2Ti |
