Features and Functions:

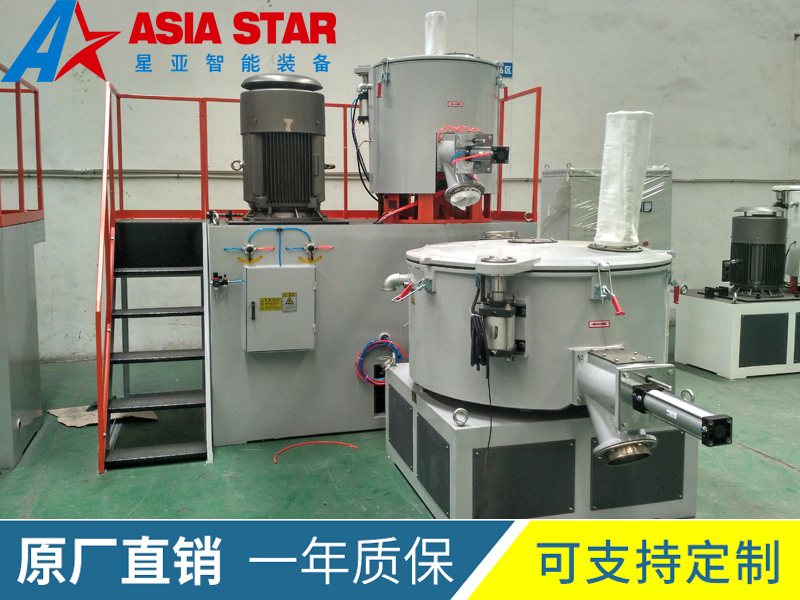

The SRL-Z Series Mixing Unit is primarily used for the compounding, mixing, coloring, and drying of various resins such as polyethylene, polypropylene, and polyvinyl chloride. It is also suitable for pre-processing steps like drying and dehydrating before the formation of engineering plastics such as ABS and polycarbonate. Additionally, it can be used for mixing phenolic and formaldehyde resins.
This unit integrates hot mixing and cold mixing processes, allowing materials that have completed hot mixing to automatically enter the cold mixing stage, ensuring cooling, removal of residual gases, and prevention of agglomeration.
Developed by introducing, digesting, and absorbing foreign technology, this unit employs PLC control, offering high automation, excellent mixing effects, comprehensive functions, compact structure, and an aesthetically pleasing design.

Main Technical Parameters:

Parameter/Model	Hot Mix/Cold Mix	Hot Mix/Cold Mix	Hot Mix/Cold Mix	Hot Mix/Cold Mix	Hot Mix/Cold Mix
Total Volume (L)	100/200	200/500	300/600	500/1250	800/1600
Effective Volume (L)	65/130	150/320	225/380	330/750	600/1050
Blade Speed (rpm)	650/1300/200	475/950/130	475/950/100	430/860/70	370/740/50
Mixing Time (Min.)	8-12	8-12	8-12	8-12	8-12
Motor Power (Kw)	14/22/7.5	30/42/11	40/55/11	55/75/15	83/110/22
Diameter (mm)	1950*1600*1800	4580*2240*2470	4800*2640*2480	5600*3000*3100	5170*3200*4480
Weight (T)	2200	3400	3600	6500	9800
