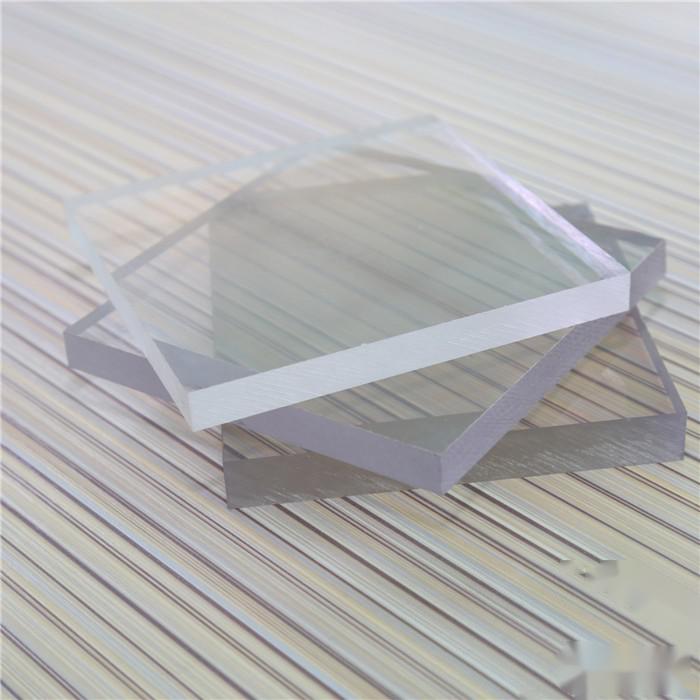

PC Board Characteristics:a Mechanical Properties1) Impact Strength: The impact resistance of professional PC sheets used in vacuum forming is 250 times higher than traditional glass and 30 times higher than acrylic sheets. PC sheets are known as "transparent steel plates" for their impact strength. 2) Good Tensile Strength: Professional PC sheets used in vacuum forming have excellent heat resistance; even at 120℃, the tensile strength can reach 350 kgf/cm². 3) Bending Strength: Professional PC sheets used in vacuum forming exhibit good bending resistance; they do not break even when bent at an angle of 90°. b Thermal Properties1) Melting Temperature: The melting temperature of PC sheets is 135℃, with a continuous service temperature of up to 120℃. 2) Linear Expansion Coefficient: The linear expansion coefficient is 7×10-5 cm/cm/℃, which is relatively low among plastics. 3) Brittle Temperature: The brittle temperature of PC sheets is -40℃, and the low continuous service temperature is -30℃, which is incomparable to general plastics. 4) Flammability: PC sheets are one of the flame-retardant, self-extinguishing plastics; they do not emit toxic gases when heated to high temperatures. ULR-94 certified, flame retardant B1 grade, no dripping, non-toxic gases; 5) Thermal Conductivity: The thermal conductivity of PC sheets is not significantly different from that of general plastics; it is 1/4 that of glass, 1/300 that of iron, 1/1000 that of aluminum, and 1/2000 that of copper, making it one of the materials with excellent thermal insulation properties.
PC Board Specifications Standard Width (mm): 1220, 1560, 1820, 2100 Regular Thickness (mm): 1.5, 2.0, 3.0, 4.0, 4.5, 5.0, 6.0, 8.0, 10.0 Standard Length (m): Thickness ≤ 4.5mm 30~50m per roll Thickness > 4.5mm 1.22m × 2.44m/panel Standard Colors: Transparent, Lake Blue, Milk White, Porcelain White, Blue, Tea Color, Smoke Gray, etc. PC Board Application Range Residential building lighting, awnings, carports, sunrooms, stadium roofs, pool covers, transportation infrastructure, industrial building lighting, mall walkways, hotel atriums, greenhouses, sound barriers, advertising light boxes, signage, security, indoor decoration, etc.
