Brand |
Tielong Machinery |
Model |
SJ90 |
Alternate Name |
Extruder |
Purpose |
Plastic Processing |
Type |
Single Screw Extruder |
Screw Quantity |
Single Screw |
Screw Diameter |
90 (mm) |
Maximum Extrusion Diameter |
400 (mm) |
Production Capacity |
200-400 (Kg/h) |
Positioning Accuracy |
1 (mm) |
Dimensions |
To be specified |
After-sales Service |
On-site installation, one-year warranty |
Specifications |
SJ90-28-55kW, SJ90-30-75kW, SJ90-30-90kW, SJ90-33-90kW, SJ90-33-110kW, SJ90-33-160kW |
|
|
|
|

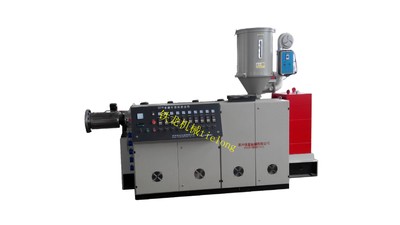

The SJ90 single screw extruder for plastics can be used to produce the melt extrusion of various plastics such as PP, PE, PC, PE-X, PVC, ABS, and PA, making it highly versatile. When paired with auxiliary machinery, it can manufacture a variety of plastic products including films, sheets, pipes, rods, and more. It is also suitable for pelletizing.
The entire machine control system adopts a digital control mode with an automatic temperature control system, ensuring simple and convenient operation.
The reducer uses involute gear transmission, which features low noise, smooth operation, high load-bearing capacity, and long service life.
