Plastic Auxiliary Machinery-Feeding/Mixing Equipment-Metering System

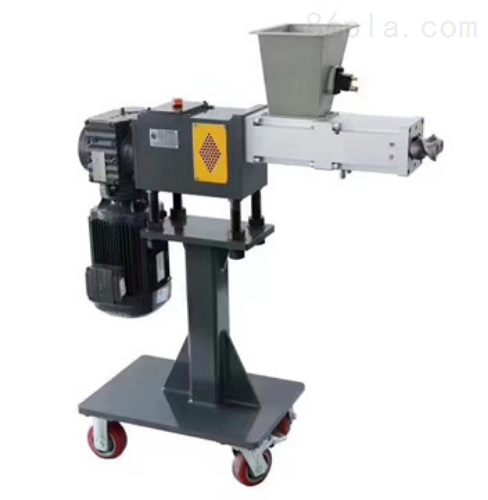

Brief Description:The side feeder is designed for adding color masterbatches and other additives. Some models also have metering functions. The control systems that require metering functions are more complex. In contrast, the simple addition and injection function is relatively straightforward, achieved by a geared motor driving a small screw (a welded part will suffice), with the outer wall made of seamless steel pipe, and the speed controlled by a variable frequency drive.
Side feeder for mixing materialsPrecautions：
The inner cavity of the die head should be streamlined to ensure that the material can be extruded uniformly along the flow channel, avoiding overheating and decomposition due to stagnation. There must not be any abrupt narrowing in the die head, nor any dead zones or stagnation areas. The flow channel should be as smooth as possible, with a recommended surface roughness Ra value of 0.4μm.
2. Sufficient compression ratio: The die head should be designed to generate a sufficient compression ratio according to the different types of plastic products and plastic varieties, in order to eliminate the weld lines caused by the diverter supports and make the products dense.
3. Correct Cross-Sectional Shape Due to factors such as the properties of plastics, pressure, density, and shrinkage rate, there is a difference between the cross-sectional shape formed by the die of the machine head and the actual cross-sectional shape of the product. This factor must be considered in the design to ensure that the die of the machine head has a reasonable cross-sectional shape.
4. The design should have a compact rhythm, be easy to assemble and disassemble, ensure tight connections, uniform heat transfer, convenient assembly and disassembly, and prevent material leakage, all while meeting the required mechanical properties.
5. Material selection should be reasonable. The die head should be made of steel that is corrosion-resistant, wear-resistant, has good tensile strength, and high hardness. In some cases, it also needs to be chrome-plated depending on the situation.
Side feeder for blendingMaintenance and Care:
1. When the feeder is started, it's best not to place anything on top of it, as this can easily lead to excessive pressure on the motor, causing it to burn out.
2. Check if the belt is intact and not loose. The feeder relies on the belt to transport materials, and only when the belt is functioning properly can the machine's production performance be fully utilized, achieving the maximum workload.
3. Since all components of the feeder are connected by gears and controls, it is essential to ensure maximum lubrication of the gears and chains to prevent damage to the machine due to lack of lubrication.
4. Due to the large amount of dust generated during feed production, a significant amount of dust can accumulate inside the feeder's control box. This dust can cause short circuits in the internal circuits, damaging electrical circuits and other components. Therefore, it is necessary to clean the dust inside the control box periodically.
5. The main power source of the feeder is the motor, which includes a power motor and a gear reduction motor (since the speed of the motor is very high, a gear reduction motor is used to reduce the speed when transmitting power). During use, it is essential to check whether there are any abnormalities with the power motor and the gear reduction motor. The motors should be maintained regularly, such as by adding gear oil to the gears of the reducer.
