SGB1000 Hollow Wall Winding Pipe Production Equipment

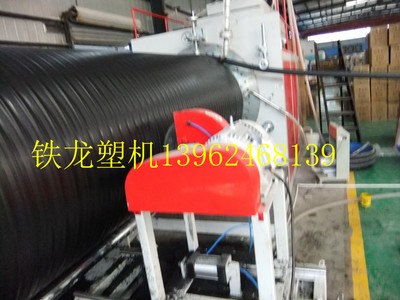

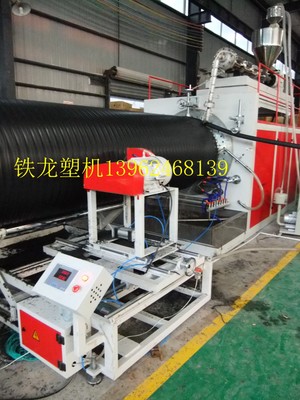

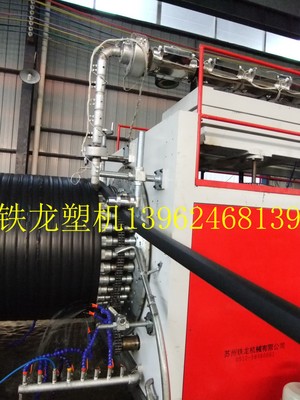

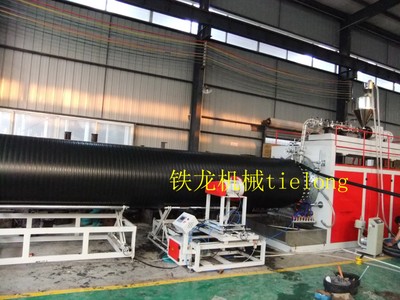

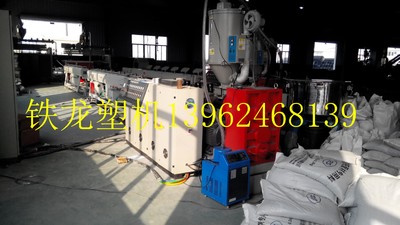

     | Brand | Tie Long Plastic Machinery | |-------|----------------------------| | Model | 300-1000 | | Pipe Diameter Range | 300-1000 (mm) | | Extrusion Capacity | 300 (kg/h) | | Type of Pipes Produced | Hollow Winding Pipes | | After-sales Service | On-site Installation, 1-year Warranty | SGB1000 Hollow Wall Winding Pipe Production Equipment is a new type of pipe manufacturing equipment with stable forming technology. The production line adopts a modular design, making operation and maintenance simple. The pipes produced by the SGB1000 Hollow Wall Winding Pipe Equipment primarily use high-density polyethylene as the main raw material. First, a round pipe is extruded by the first extruder and then shaped into a square pipe through a cooling and shaping machine. It then enters the winding forming machine, where a second extruder simultaneously extrudes molten adhesive strips to bond the square pipes in a helical form. The inner and outer walls of the pipe are smooth and flat, with specifications ranging from φ300-1000mm. Depending on different usage conditions, the ring stiffness is divided into four grades, reaching up to 16 kN/m². This type of pipe is corrosion-resistant, lightweight, easy to install, and widely used in drainage and sewage pipelines for highways, municipal construction, residential areas, sports fields, plazas, mines, agriculture, culverts, bridges, and other applications.
