SDF-2 Type Tunnel Method Fireproof Coating Tester

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials

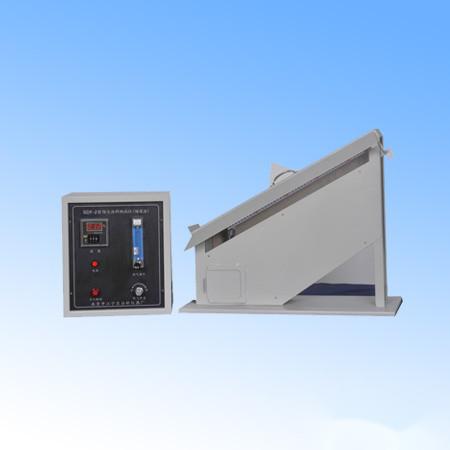

SDF-2 Tunnel Method Fireproof Coating Testing Instrument 1. Scope of Use Applicable for testing the flame spread characteristics of fireproof coatings applied to the surface of substrates under laboratory conditions, as well as evaluating the protective effect of the fireproof coatings on substrates and their flame spreading performance. 2. Product Features 1. The tunnel furnace is welded from a metal steel frame, with a sturdy structure and ease of use. 2. The flue end of the tunnel furnace is open, and both side surfaces of the tunnel furnace have triangular natural ventilation openings, with an air supply hole fixed at the lower end. 3. There is a viewing window made of quartz glass or high-silica glass with scale markings on the lower side of the test panel support. 4. The control recording box mainly consists of a power switch, gas flow regulation and indication, ignition device, and combustion temperature recorder. 3. Main Technical Parameters 1. Ambient Temperature: 5~35℃; 2. Relative Humidity: Not greater than 85%; 3. Working Environment: Indoor without forced ventilation; 4. Power Supply: 200~240V, 50HZ; 5. Automatically records temperature and prints curve graphs; 6. The burner has a top diameter of 20mm and a height of approximately 200mm; 7. The temperature of the blue flame of the burner is (900±20)℃; 8. Combustible Gas Source: Natural gas, liquefied petroleum gas, or city gas; 9. Thermocouple: Class II accuracy, K-type, armored thermocouple with an outer diameter not greater than 3mm; 10. Electronic Potentiometer: Error less than the measured temperature ±0.5%; 11. High-voltage electronic ignition system. Beijing Xinfeng Zhuorui Instrument Equipment Co., Ltd. Phone: 18513498889 QQ: 2028696743 Phone: 010-58418090 Fax: 010-58043777 Website: www.bjkji.com Address: No. 158, Science Park District, Haidian District, Beijing Main Projects: Oxygen index tester / Horizontal and vertical combustion tester / Building materials combustibility test furnace / Building materials non-combustibility test furnace / Building materials smoke density tester / Large plate fireproof coating testing instrument / Initial drying crack resistance testing device / Electronic testing machine / High and low temperature test chamber / Low temperature freeze-thaw test chamber / Constant temperature and humidity chamber / Cigarette paper smoldering performance tester, hardness tester, thickness gauge, concrete instruments, cement testing instruments, mortar testing instruments, slurry testing instruments, geotechnical testing instruments, asphalt testing instruments, highway aggregate instruments, waterproof materials instruments, highway rock instruments, pavement testing instruments, pressure testing machine curing room instruments, and laboratory consumables, etc.
Product Consultation
