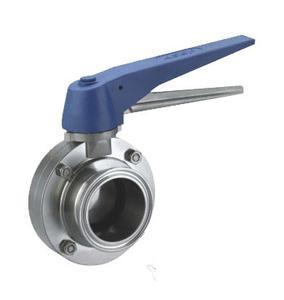

Sanitary Grade Duckbill Handwheel Quick-Fitting Butterfly Valve

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials

Sanitary duck-billed quick-connect butterfly valve product introduction:

Material: Valve body material: (Contacting part with medium)304/316L

Seal ring material: Standard: EPDM (EPDM)

Optional: Silicon rubber (SILICON), Fluororubber (FPM)

Adjustable handle:

Standard: Stainless steel pull rod handle, 3 positions, adjustable by 45°

Optional: Adjustable handle (duck-billed), 13 positions, adjustable by 15°

Connection method:

Welding, threading, clamp, flange

Connection methods with pipelines or equipment are manufactured according to DN11850, IDF/ISO, SMS national standard sizes, ensuring connection and interchangeability with imported equipment

Technical parameters

Size range

DN25-DN150 3/4″-4″ Max. working pressure: 10bar

Supply compressed air: 4-8 bar Compressed air connection: Air tube joint R1/8″

Widely used in beer, beverage, dairy, juice, pharmaceutical, biotechnology and other fields
