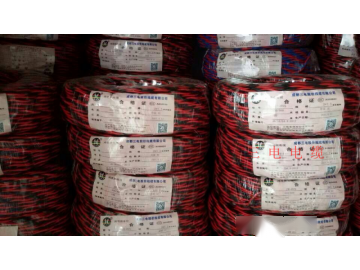

Polyvinyl Chloride (PVC) Insulated Flexible Wire (JB8734-98, GB/T5023-2008)
● Purpose
This product is suitable for connections of household appliances, small electric tools, instruments, and power lighting devices with AC voltage of 450/750V and below, and is more commonly used for connection lines of fire emergency alarms.
● Working Temperature
Not exceeding 70℃, installation temperature not lower than 0℃.
● Model and Name
Model
Name
RVS
Copper Core PVC Insulated Stranded Flexible Connecting Wire
ZR-RVS
Flame Retardant Copper Core PVC Insulated Stranded Flexible Connecting Wire
WDZ-RYJS
Low Smoke Halogen-Free Environmentally Friendly Flame Retardant Copper Core PVC Insulated Stranded Flexible Connecting Wire
● Technical Performance
1. Finished insulated wires and finished wires, placed in water at room temperature of 20+5℃ for at least 1 hour, can withstand the AC voltage test specified below.
2. The wire has good electrical insulation properties, mechanical properties, and flame retardant properties, is reliable in quality, and is convenient and durable.
3. The surface of the insulation or sheath of the finished wire should have continuous markings of the manufacturer's name, model, and voltage.
Test Name
Test Item
Test Value
Rated Voltage of the Wire
300/500V
450/750V
Insulation Voltage Test of Finished Insulated Wire Core
Test Voltage (V): According to insulation thickness
0.6mm and below
1500
0.6mm and above
2000
2500
Voltage Application Time Not Less Than (min)
5
5
Voltage Test of Finished Wires
Test Voltage
2000
2500
Voltage Application Time Not Less Than
5
5
