Brand: Keyou Model: HYAT

Number of Cores: Multi-core Insulation Material: PVC

Application: Urban Communication Cable Core Material: Bare Copper Wire

Product Certification: CCC

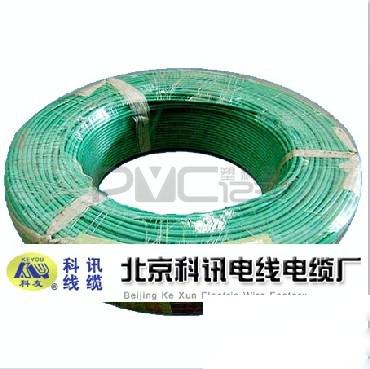

Brand: Keyou Model: RV

Core Material: Bare Copper Wire Number of Cores: Single-core

Insulation Material: Polyvinyl Chloride Outer Diameter of Wire: 6 (mm)

Product Certification: CCC

The letter V represents PVC (polyvinyl chloride), which is the plastic insulation layer.

The letter R means soft; to achieve softness, the number of conductors is increased, and the diameter of each wire is reduced.

Beijing Kexun Wire and Cable Factory specializes in manufacturing BV, BVR, RV, ZR-RVS, ZR-BV, NH-BV, BLX, BXR, YZ, YC, RVV, RVS, RVB, BVV, RVVP, BLV, BXVW, JKYJ, JKLYJ, DT, DTL, GT, SBH, MYQ-0.3/0.5, MY-0.38/0.66, MYP-0.38/0.66, MYP-0.66/0.24, HBGYV2*1.2, HBYV2*1*0.5, HBYV4*1*0.5, LGJ, SYV, KVV, KVV22, NH-KVV, NH-KVV22, NHKVVP, HYA, KVVP, KVVP2, GYXTW, GYSTS, GYXTW53, KVV22, KVV2-22, GYXTS, NH-YJV, NH-VV, VLV, NH-YJV22, NH-VV22, VLV22, DJYPA, DJYVP, DJYPVP, DJYP2V, DJYVP2, DJYP2VP2, DJYP3V, DJYVP3, DJYP3VP3, YJV, YJV22 and other wires, power cables, control cables, full range of weak current cables, electronic computer cables, rubber-sheathed cables, coaxial cables, control shielded cables, flame-retardant, fire-resistant and special cables in 20 major categories, over 5000 specifications, widely used in industries such as power, metallurgy, petroleum, chemical, defense, power stations, coal mines, transportation, ports, and construction. It has passed ISO9001-2000 quality management system certification, ISO14000 environmental management system certification, CCC, CQC certification, and obtained the industrial product production license issued by the National Quality Supervision, Inspection and Quarantine. The factory is also the unit in Beijing region that has obtained the CQC certification for flame-retardant and fire-resistant cables, and has been awarded multiple honors such as “National Product After-sales Service User Satisfaction Enterprise” and “National Quality Inspection Stable Qualified Product.”

Introduction to HYAT Communication Cable: Copper core solid polyolefin insulated filling moisture barrier polyethylene sheathed urban communication cable, suitable for pipeline laying or direct burial.

Main electrical performance of HYAT oil-filled cable: 1. DC resistance: 20℃ 0.4 ≤148 0.5 ≤95.0 0.6 ≤65.8 0.8 ≤36.6 2. Insulation electrical strength: between conductors 1min 1kv no breakdown, conductor to 1min 3kv no breakdown 3. Insulation resistance: each core wire grounded, HYAT cable greater than 3000MΩ.km. 4. Working capacitance: average value 52±2nF/km 5. Far-end crosstalk immunity: at 150kHZ, the specified combination's power average is greater than 69dB/km.

Models of HYAT series cables: HYAT22, HYYT23, HYAT23, HYAT53
