Rubber line board Shanghai rubber protection board Two-hole rubber protection board
Shanghai Yilan Traffic Facilities Co., Ltd. products are sold well both at home and abroad, with more than 10 sales outlets in major cities across the country. With the company's strong strength and industry-wide acclaim, we successfully cooperated with the Guangzhou Asian Games, and our company's "Yilan" line groove is a designated brand supplier of cable wiring products. Looking forward to cooperating with you to create brilliance together!
Our company specializes in the production of rubber line groove boards, cable line groove boards, stage line groove boards, performance line groove boards, electric wire line groove boards, rubber bridge boards, PVC line groove boards, cable bridge boards. Our reputation is built on quality, and the cable bridge board we provide is designed to provide effective cable management system to ensure your work safety and make your business smoother.
Class A straight board:
Medium two-slot specifications: 1000*450*70mm Slot diameter: 50*50mm Weight: 13 kg
Two-slot specifications: 800*300*45mm Slot diameter: 30*25mm Weight: 7 kg
Medium two-slot specifications: 800*430*65mm Slot diameter: 50*50mm Weight: 12.5 kg
Large two-slot specifications: 660*580*105mm Slot diameter: 90*90mm Weight: 19 kg
Three-slot specifications: 1000*345*50mm Slot diameter: 30*30mm Weight: 12 kg
Three-slot specifications: 800*430*50mm Slot diameter: 30*30mm Weight: 12 kg
Large three-slot specifications: 800*520*85mm Slot diameter: 65*65mm Weight: 14.5 kg
Four-slot specifications: 800*500*65mm Slot diameter: 50*50mm Weight: 16.5 kg
Five-slot specifications: 800*500*50mm Slot diameter: 30*30mm Weight: 12.5 kg
Class A all straight boards can be equipped with 90° corners and three-way corners.
Rubber line board Shanghai rubber protection board Two-hole rubber protection board
Class B straight board:
3-line groove 1000mm*310mm*55mm (3-line groove) aperture: 35x35mm
3-line groove 900mm*500mm*75mm (3-line groove) aperture: 55x65mm
4-line groove 770mm*485mm*65mm (4-line groove) aperture: 40x40mm
5-line groove 900mm*500mm*50mm (5-line groove) aperture: 32x35mm
2-line groove 900mm*620mm*100mm (2-line groove) aperture: 80x90mm
Class C straight board:
Small two-slot specifications: 1000*250*50mm Slot diameter: 32*35mm Weight: 7 kg
Three-line groove specifications: 1000*300*50mm Slot diameter: 35*32mm Weight: 9 kg
Large two-slot specifications: 900*580*90mm Slot diameter: 80*95mm Weight: 22 kg
Three-line groove specifications: 900*500*85mm Slot diameter: 70*65mm Weight: 15 kg
Four-line groove specifications: 900*500*60mm Slot diameter: 40*45mm Weight: 15 kg
Five-line groove specifications: 900*500*50mm Slot diameter: 30*40mm Weight: 14 kg
Medium one-slot specifications: 1000*260*70mm Slot diameter: 50*70mm Weight: 8.5 kg
Large one-slot specifications: 1000*580*120mm Slot diameter: 125*100mm Weight: 22 kg

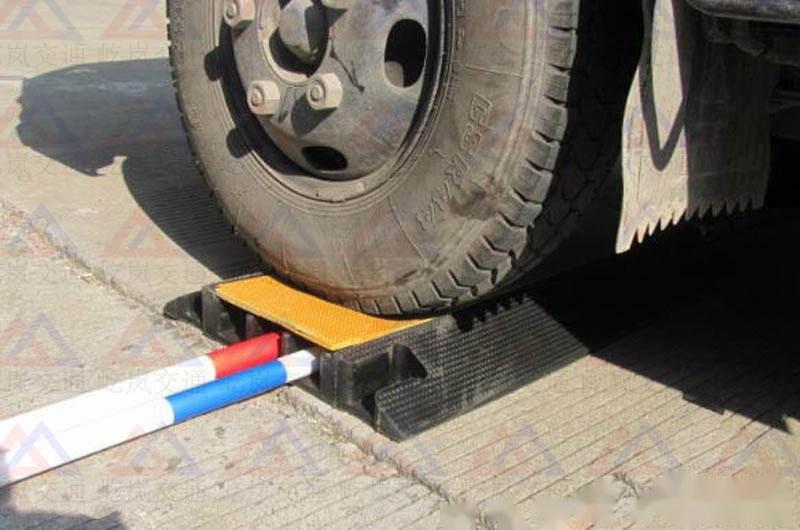

Product features: Rubber line groove board, also known as line groove board and cable protection board, also known as over-line board. Car pressure-resistant ground line groove. Car over ground line groove, car rolling line groove. Used for areas where cables need to be temporarily laid, hiding the cables to avoid exposure. It protects the cables or other pipelines inside the line groove
