Product Name: Cable Bridge Plate (Rubber Cable Bridge, Rubber Cloth Cable Bridge)
Material: High-strength rubber base + PVC cover
Installation steps:
1. Lay the dedicated wire trough along the dedicated line.

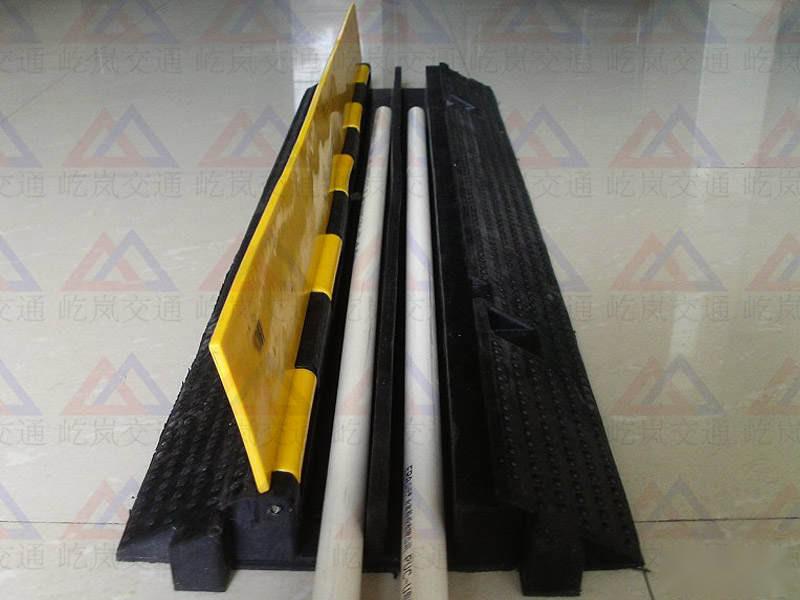

2. Open the top cover and put the special cable into the trough.
3. Close the cover and cars can pass through freely.
Our company has developed a series of wire trough products so far:
Rubber Wire Trough Deceleration Belt Changchun Rubber Cable Bridge Jilin Rubber Cable Bridge
Class A straight plate:
Medium two-slot specifications: 1000*450*70mm Slot diameter: 50*50mm Weight: 13 kg
Two-slot specifications: 800*300*45mm Slot diameter: 30*25mm Weight: 7 kg
Medium two-slot specifications: 800*430*65mm Slot diameter: 50*50mm Weight: 12.5 kg
Large two-slot specifications: 660*580*105mm Slot diameter: 90*90mm Weight: 19 kg
Three-slot specifications: 1000*345*50mm Slot diameter: 30*30mm Weight: 12 kg
Three-slot specifications: 800*430*50mm Slot diameter: 30*30mm Weight: 12 kg
Large three-slot specifications: 800*520*85mm Slot diameter: 65*65mm Weight: 14.5 kg
Four-slot specifications: 800*500*65mm Slot diameter: 50*50mm Weight: 16.5 kg
Five-slot specifications: 800*500*50mm Slot diameter: 30*30mm Weight: 12.5 kg
All Class A straight plates can be equipped with 90° corners and three-way corners.
Class B straight plate:
3-wire trough 1000mm*310mm*55mm (3-wire trough) Aperture: 35x35mm
3-wire trough 900mm*500mm*75mm (3-wire trough) Aperture: 55x65mm
4-wire trough 770mm*485mm*65mm (4-wire trough) Aperture: 40x40mm
5-wire trough 900mm*500mm*50mm (5-wire trough) Aperture: 32x35mm
2-wire trough 900mm*620mm*100mm (2-wire trough) Aperture: 80x90mm
Rubber Wire Trough Deceleration Belt Changchun Rubber Cable Bridge Jilin Rubber Cable Bridge
Class C straight plate:
Small two-slot specifications: 1000*250*50mm Slot diameter: 32*35mm Weight: 7 kg
Three-wire trough specifications: 1000*300*50mm Slot diameter: 35*32mm Weight: 9 kg
Large two-slot specifications: 900*580*90mm Slot diameter: 80*95mm Weight: 22 kg
Three-wire trough specifications: 900*500*85mm Slot diameter: 70*65mm Weight: 15 kg
Four-wire trough specifications: 900*500*60mm Slot diameter: 40*45mm Weight: 15 kg
Five-wire trough specifications: 900*500*50mm Slot diameter: 30*40mm Weight: 14 kg
Medium one-slot specifications: 1000*260*70mm Slot diameter: 50*70mm Weight: 8.5 kg
Large one-slot specifications: 1000*580*120mm Slot diameter: 125*100mm Weight: 22 kg
The Yilan brand rubber cable bridge produced by our company adopts a modular design, and the interlocking protection provides a simple and feasible method to protect important cables and hoses, widely used in commercial, industrial, construction, and electrical wiring and installation.
Company statement: defective cable trough plates will never leave the factory, strictly control the quality
