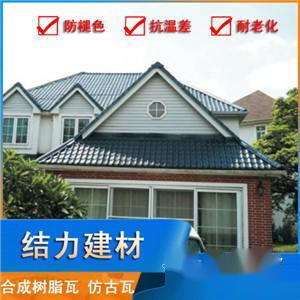

Jieli synthetic resin tile is an upgraded product that uses advanced multi-layer co-extrusion technology on the surface of ordinary PVC tiles, combining a layer of high-weather-resistant ASA engineering resin on the surface. This effectively overcomes the shortcomings of PVC tiles, such as easy fading and becoming brittle and hard. At the same time, Jieli antique resin tiles are characterized by energy-saving and environmental protection, sound insulation and thermal insulation, long-lasting colors, good waterproof performance, impact resistance, low-temperature resistance, corrosion resistance, flame retardancy with a fire rating of B1, light weight, and a long lifespan. Jieli synthetic resin tiles have a fast installation speed and do not require the construction of a waterproof layer, making them especially suitable for lightweight steel and wooden beam residences, villas, and antique buildings. Colors can be customized according to customer requirements to meet different installation needs. The price of synthetic resin tiles is determined by their specifications, materials, and thickness, with online prices for reference only. Customization is available according to different customer needs, and nationwide direct sales are offered. For inquiries, please call 0535-3490877 or 13589772720, Manager Qin.
Corrosion-resistant and good waterproof performance
Jieli synthetic resin tiles can withstand long-term corrosion from various chemical substances such as acids, alkalis, and salts. Tests show that after soaking in salt, alkali, and various acids below 60% for 24 hours, there is no chemical reaction. The high-weather-resistant resin used in Jieli synthetic resin tiles is dense and does not absorb water, eliminating the issue of micro-pore seepage. The large surface area of the resin tiles results in very few roof seams, and the overlapping joints are tightly bonded, providing excellent waterproof performance.
Impact-resistant and low-temperature resistant
Physical experiments on Jieli synthetic resin tiles show that a steel ball weighing one kilogram can fall freely from a height of 2 meters onto the tile surface without causing cracks. Even after 10 impacts from a falling ball at low temperatures, the product remains undamaged. After 10 freeze-thaw cycles, there are no phenomena such as hollowing, bubbling, peeling, or cracking.
Long-lasting color
Jieli synthetic resin tiles use ultra-high weather-resistant engineering resin produced by ATOGLAS in France as the surface material. It has extraordinary durability in natural environments, and even after prolonged exposure to ultraviolet rays, moisture, high, and low temperatures, it can maintain color stability. Evidence from outdoor usage in areas with intense sunlight, such as Arizona and Florida, has shown that it can ensure stable performance for 10 years with ΔE ≤ 5.
Thermal insulation and soundproofing
The thermal conductivity coefficient of Jieli synthetic resin tiles is 0.325 w/m.k, which is about 1/3 that of clay tiles, 1/5 that of 10mm thick cement tiles, and 1/2000 that of 0.5mm thick color steel tiles. Even without considering additional insulation layers, the thermal insulation performance of Jieli synthetic resin tiles still achieves ideal results. Acoustic measurement experiments indicate that Jieli synthetic resin tiles effectively absorb sound during external impacts such as heavy rain, hail, and strong winds.
Volume stability and load resistance
The expansion coefficient of Jieli synthetic resin tiles is 4.93 × 10^-5 (1/oC). The tile design has bidirectional tensile properties, ensuring that even with significant temperature changes, the expansion and contraction are self-managed, maintaining geometric stability. Jieli synthetic resin tiles have excellent load-bearing properties, and tests conducted by the Shandong Construction Materials and Components Quality Supervision Station showed that with a support interval of 750mm and uniformly distributed loading of 150kg, the tiles remained undamaged.
Lightweight and flame retardant
Jieli synthetic resin tiles weigh 6kg per square meter, making them lightweight structural materials that effectively reduce the load on buildings and save on construction frame materials. They are also easy to handle and install, reducing construction costs. The main structural material of Jieli synthetic resin tiles is polyvinyl chloride resin, whose chemical properties provide inherent flame retardancy. The product has passed national fire department tests, achieving a fire performance rating of B1.
Environmentally friendly and energy-saving
Jieli synthetic resin tiles have passed the "China Environmental Labeling Product Certification" and have been evaluated by the National Ministry of Construction's Science and Technology Development Center, confirming that the product is environmentally friendly, energy-saving, and recyclable. It is a new type of building material that is strongly promoted and supported in China as "environmentally friendly and energy-saving."
