QCS-2 Automotive Interior Material Combustion Tester (Stainless Steel Version)

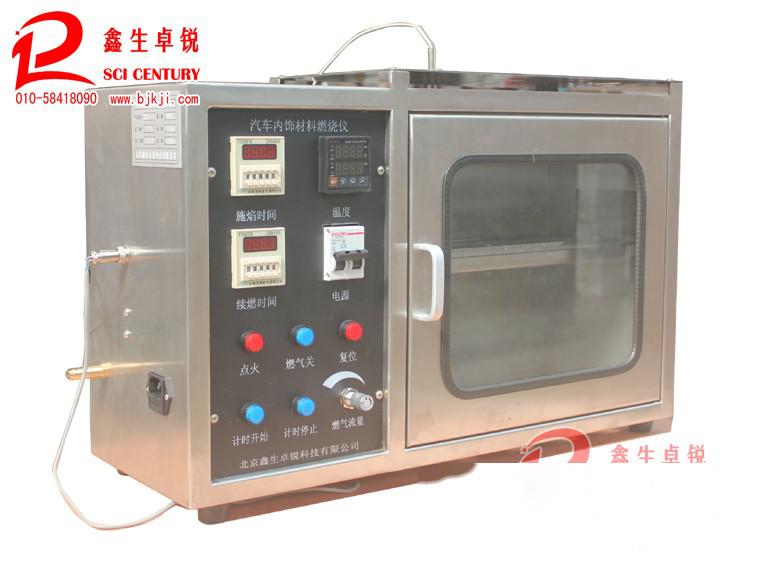

QCS-2 Automotive Interior Combustion Tester (Stainless Steel Version) is made of smoke and gas corrosion resistant frosted stainless steel housing, produced by Beijing Xinsheng Zhuorui with a split design of control box and testing chamber, a tempered glass door for easy observation of tests, and is equipped with stainless steel sample clamps, sample templates, ignition automatic control system, and automatic exhaust system.
Produced by Beijing Xinsheng ZhuoruiQCS-2 Automotive Interior Material Combustion Tester
QCS-2 Automotive Interior Combustion Tester is designed based on four major standards for automotive interior combustion and is applicable to GM6090M, GM9070P, JIS D 1201, JASO M403 , ISO 3795, ASTM D5132, QB/T 2729-2005 standards.
The four major design standards for the QCS-2 Automotive Interior Combustion Tester are: produced by Beijing Xinsheng ZhuoruiGB8410-2006 combustion characteristics of automotive interior materials, FMVSS 571.302 Federal Motor Vehicle Safety Standards (equivalent to ISO 3795), DIN7520 "Combustion Characteristics of Automotive Interior Materials", TL1010 combustion characteristics of automotive interior materials.
The automotive interior material combustion tester mainly aims to qualitatively evaluate the flammability of automotive interior materials. It is suitable for manufacturers of various types of automotive interior materials and their material components' research, production, and quality inspection departments, as well as for industries related to insulating materials, engineering plastics, or other solid combustible materials.
Technical parameters of the automotive interior combustion tester produced by Beijing Xinsheng Zhuorui:
1. Burner: Φ9.5mm±0.3mm length about 100mm with one Bunsen burner
2. Test Inclination: Bunsen burner 90° vertical facing the horizontally placed sample for combustion
3. Flame Height: 20mm± 2mm to 100mm±2mm adjustable(generally set to 38mm)
4. Flame Application Time: 0-999.9s±0.1s adjustable (generally selected as 15s)
5. Sustained Flame Time: 0-999.9s±0.1s
6. Combustion Gas: Liquefied petroleum gas or natural gas (user-supplied)
7. Temperature Range: 0~200℃ (displays the internal temperature of the working chamber during testing)
8. Testing Process: Automatic control of testing procedures
