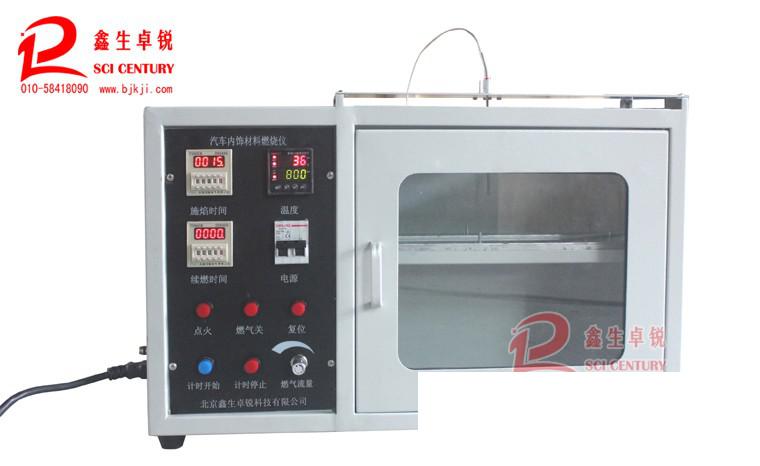

QCS-2 Automotive Interior Material Combustion Testing Instrument
I. Scope of Use
The automotive interior material combustion testing instrument is primarily used for qualitative assessment of the flammability of automotive interior materials. It is suitable for manufacturers of various types of automotive interior materials and their material components, as well as research, production, and quality inspection departments. It is also applicable in industries related to insulation materials, engineering plastics, or other solid combustible materials.
Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd.
Phone: 18513498889
QQ: 2028696743
Phone: 010-58418090
Fax: 010-58043777
Website: www.bjkji.com
Address: No. 158, Science and Technology Park, Haidian District, Beijing
Main Projects: Oxygen Index Determination Instrument / Horizontal and Vertical Combustion Test Apparatus / Combustibility Test Furnace for Building Materials / Non-combustibility Test Furnace for Building Materials / Smoke Density Test Instrument for Building Materials / Large Sheet Fireproof Coating Testing Instrument / Initial Drying Crack Resistance Testing Device / Electronic Testing Machine / High and Low Temperature Test Chamber / Low Temperature Freeze-Thaw Test Chamber / Constant Temperature and Humidity Chamber / Cigarette Paper Smoldering Performance Testing Instrument, Hardness Tester, Thickness Gauge, Concrete Instruments, Cement Testing Instruments, Mortar Testing Instruments, Slurry Testing Instruments, Geotechnical Testing Instruments, Asphalt Testing Instruments, Highway Aggregate Instruments, Waterproof Material Instruments, Highway Rock Instruments, Pavement Testing Instruments, Pressure Testing Machine Curing Room Instruments, and Laboratory Consumables, etc.
II. Instrument Working Conditions and Main Technical Indicators
2.1 Ambient Temperature: -5℃ -30 ℃.QQ: 2028696743
2.2 Relative Humidity: ≤ 85% .
2.3 Power Supply Voltage: 220V+ 10%, 50HZ, Power: 100W.
2.4 Gas Source: Liquefied Petroleum Gas
2.5 Instrument Dimensions: 590mm*210mm*460mm.
2.6 Stopwatch Accuracy Not Less Than 0.5s .
2.7 The burner applies flame to the sample for 15s.
2.8 The inner diameter of the burner tube 9.5mm+0.1mm, length about 100mm.
2.9 Test Inclination: The burner burns the sample placed horizontally at a vertical angle of 90°.
2.10 Flame Height: 20mm± 2mm to 100mm± 2mm adjustable(Generally set to 38mm)
2.11 Application Time: 0-999.9s± 0.1s adjustable (generally selected as 15s)
2.12 Sustained Burning Time: 0-999.9s± 0.1s, observe the flame after reaching the marking line, manually start and manually pause
2.13 Combustion Gas: Liquefied Petroleum Gas or Coal GasQQ: 2028696743
2.14 Temperature Range: 0~ 200℃ (displays the internal temperature of the chamber during testing)
