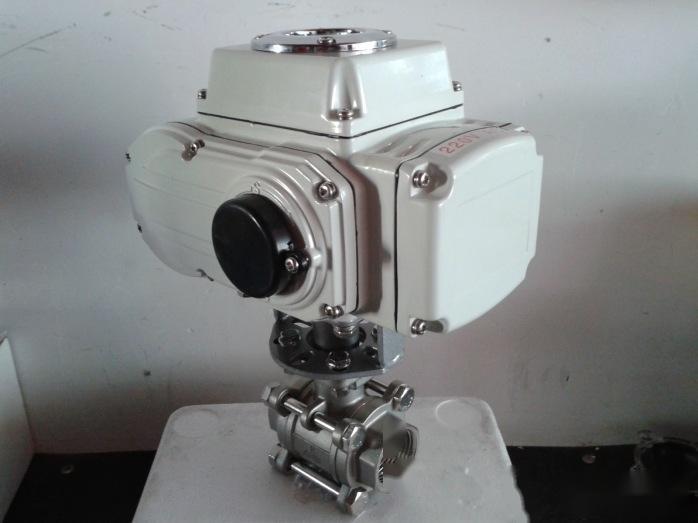

【Q911F Electric Threaded Ball Valve Product Features】:
Electric Threaded Ball Valve (internal threaded connection ball valve) and butt-welded connection ball valve are available in single-piece, two-piece, and three-piece designs. The valve body is cast using advanced technology imported from Taiwan, featuring a reasonable structure and attractive appearance. The valve seat adopts an elastic sealing structure, ensuring reliable sealing and easy operation. The valve stem employs a downward-sealed structure, which prevents the stem from being blown out during abnormal pressure increases in the valve chamber. A 90° switch position mechanism can be set up and locked as needed to prevent misoperation.
◆ The three-piece electric ball valve has low fluid resistance, making it one of the valves with the lowest fluid resistance. It operates using AC220V, AC380V, or DC24V power supply and accepts (4-20mA, 0-10mA, or 1-5VDC) current or voltage signals for control. The torque output for the angle stroke rotates the ball from 0° to 90°, completing the opening and closing or regulating action.
◆ The fully electronic electric actuator features an electromechanical integrated structure, providing servo operation inside the mechanism and feedback on the opening position signal, position indication, manual operation, and other functions. It is powerful, reliable, and simple to connect. By inputting current or voltage signals, the rotation angle of the ball core (any angle from 0° to 90°) can be adjusted to achieve proportional control actions.
◆ The ball core channel is smooth and flat, making it difficult for media to accumulate, allowing for pipeline ball passage. It has a simple structure, lightweight, and good sealing performance. It is particularly suitable for applications requiring zero leakage rates.
Main Technical Parameters
