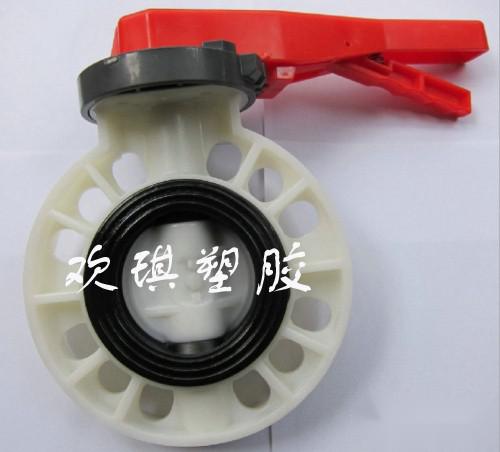

PVC Butterfly Valve/Manual Butterfly Valve/Flanged Butterfly Valve/Butterfly Valve/Gate Valve, PVC Butterfly Valve Size: DN50--DN200 MM (Inch: 2'--8'), PVC Butterfly Valve Diameter: 63 MM--225 MM. PVC Butterfly Valve Material: Valve Body: PVC, Valve Plate: PP, Valve Stem: 45# Carbon Steel, Handle: PVC, Valve Seat: NBR, TPE, EPDM, FPM (VitonA), Positioning Block: PVC. PVC Butterfly Valve Pressure: PN6--PN10 (PN0.6--PN1.0Mpa). PVC Butterfly Valve Working Temperature: 0--60 degrees. PVC Butterfly Valve Ambient Temperature: -10--+60 degrees. PVC Butterfly Valve Corrosion Resistance, Small Flow Loss, Small Space Occupation. The platform design above PVC Butterfly Valve can be equipped with a driver or electric motor. PVC Butterfly Valve Double Sealed Valve Shaft isolates the medium contact parts. Valve Seat Applicable Temperature Range: NR (Natural Rubber) -20+82°, EPDM (Ethylene Propylene Diene Monomer) -40+125°, FPM (Viton A) (Fluororubber) -23+160°.
Application: The product can be widely used in civil construction, tap water, farmland irrigation, chemical industry, pharmaceuticals, aquaculture, aquariums, sewage treatment, ships and other industries.
Outstanding Features: Advanced design, small switch torque, strong sealing performance. The product is environmentally friendly, with good acid and alkali resistance, corrosion resistance. It has the advantages of anti-scour, no scar, light weight, easy installation and disassembly, easy maintenance, long service life, etc., and is a substitute for metal butterfly valves.
