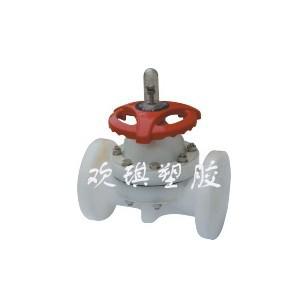

PVDF Diaphragm Valve - Flanged PVDF Diaphragm Valve Model G41F-10F

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
PVDF Diaphragm Valve Scope of Use and Structural Characteristics of PVDF Flanged Diaphragm Valve: Suitable for the delivery and shut-off of corrosive media, as well as flow regulation of PVDF diaphragm valves. The operating temperature of PVDF diaphragm valves varies according to the material, ranging from -14℃ to 100℃ and -40℃ to 140℃. The flowing components are assembled from RPP or PVDF injection molded parts, providing excellent corrosion resistance, easy operation, and lightweight, capable of replacing stainless steel valves. The sealing element diaphragm of the PVDF diaphragm valve is made from F46 or PFA, with a folding endurance of ≥1200 times and corrosion resistance comparable to F4. It employs a screw lifting structure, offering high opening and closing torque and good stability. Model: G41F-10S, Size: DN15-DN250, Connection Method: Flange, Material: FRPP, UPVC, CPVC, PVDF, PPH. Temperature Range: UPVC (Rigid Polyvinyl Chloride): -40℃ to +60℃, FRPP (Reinforced Polypropylene): -20℃ to +90℃, PPH (High Molecular Polypropylene): -20℃ to +90℃, PVDF (Polyvinylidene Fluoride): -40℃ to +120℃, CPVC (Chlorinated Polyvinyl Chloride): -40℃ to +95℃. The product is widely used in various fields such as chemical industry, chlor-alkali, water treatment, environmental protection, and electroplating. Shanghai Huanqi Plastic Pipeline Co., Ltd. Name: Wang Zhigang Company Phone: 021-57562878 Company Fax: 021-57562676 Mobile: 15900400720 Email: twhq29@163.com Company Website: http://www.hqpvc.com
Product Consultation
Supplier
Shanghai Huanqi Plastic Pipe Co., Ltd.
location
China Shanghai
Main products
Pneumatic ball valve, Pneumatic UPVC ball valve, PP slide gate valve, PVC plastic ball valve, PP back pressure valve, UPVC turbine ball valve, Pneumatic sanitary ball valve, Plastic safety valve, PP flange ball valve, D71X plastic wafer butterfly valve, Plastic damper, PVDF back pressure valve, UPVC back pressure valve, PP single piece check valve, Pinch valve, Plastic back pressure valve, PVC flange ball valve, Pneumatic plastic ball valve, Plastic check valve, PVDF damper, Plastic butterfly valve, Clear ball valve, Plastic filter, Extended stem plastic butterfly valve, PE vent ball valve, Plastic pipe fittings, CPVC turbine ball valve, PVDF double union ball valve, CPVC ball valve, PVC double union ball valve, Plastic stop valve, Plastic diaphragm valve, Plastic ball valve
About Us
Shanghai Huanqi Plastic Pipe Co., Ltd. is a medium-sized enterprise specializing in the production of corrosion-resistant valves, plastic valves, PVC valves, electric three-way ball valves, pneumatic three-way ball valves, plastic three-way ball valves, plastic butterfly valves, PVC three-way ball valves, PVC wafer-type butterfly valves, and UPVC three-way ball valves as non-metallic anti-corrosion chemical equipment. The company focuses on science and technology, cherishes technical talents, introduces advanced valve technologies from both domestic and international sources, and continuously develops new products. Our products are sold to 31 provinces, municipalities, and autonomous regions across China and are widely used in industries such as chemicals, oil, chlor-alkali, dyes, pharmaceuticals, pesticides, food, metallurgy, electroplating, environmental protection, and pure water, receiving widespread acclaim from users. We are one of the largest production bases for chemical pumps, valves, and pipe fittings in China. Adhering to the principle of quality first and customer paramount, we promote development through quality and seek efficiency through credibility. Our company is equipped with comprehensive production facilities, advanced testing methods, and a complete enterprise standardization system. We were the first in the industry to obtain national pressure pipeline safety registration (TS) certification and have achieved ISO9001:2000 international quality management system certification. We are a member factory of Sinopec's equipment resource market and an export-oriented enterprise. We offer excellent after-sales service and promise that if any product manufactured by our company has quality issues within its usage range, we will accept returns or exchanges, and all related costs will be borne by us. Ensuring high-quality products, specialized production skills, and providing timely and thoughtful services to customers is the business philosophy of Huanqi. Our products always maintain an advanced level both domestically and internationally. We closely follow the pulse of the market economy and sincerely welcome domestic and international merchants to negotiate, visit, and establish business, technical, and economic cooperation to create a brilliant 21st century together. We have drawn lessons from past glories and experiences, not simply imitating or discarding history, but absorbing its essence and eliminating its dross. Over the years, we have integrated valuable experience into modern concepts, introducing a brand-new concept of excellence. Steadily advancing, reviewing the development process of Huanqi, every step we take is solid and steady. Past glories are just previous highlights; today marks the beginning of a new era, and the future holds true brilliance.
