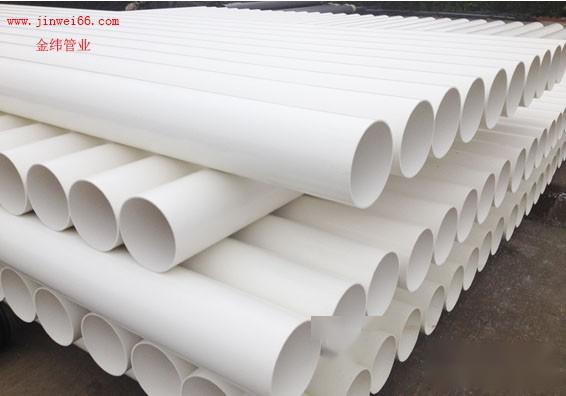

Light weight, easy to handle: PVC pipes are very lightweight, making transportation, loading, unloading, and construction convenient, thus saving labor costs.
● Excellent chemical resistance: PVC pipes have excellent resistance to acids, alkalis, and corrosion, making them very suitable for the chemical industry.
● Low fluid resistance: The surface of PVC pipes is smooth, resulting in low resistance to fluid flow, with a roughness coefficient of only 0.009, lower than that of other pipe materials, allowing for a reduced pipe diameter at the same flow rate.
● High mechanical strength: PVC pipes have excellent water pressure resistance, external pressure resistance, impact resistance, etc., making them suitable for various piping engineering conditions.
● Good electrical insulation: PVC pipes possess superior electrical insulation properties, making them suitable for wire and cable conduits, as well as electrical wiring in buildings.
● Does not affect water quality: PVC pipes have been confirmed by dissolution tests to not affect water quality, making them the current choice for drinking water pipelines.
● Easy construction: The joining of PVC pipes is quick and easy, resulting in lower construction costs.
| Project | PVC-M Water Supply Pipe | PVC-U Water Supply Pipe | PVC-U Irrigation Pipe |
| Density (kg/m³) | 1.35-1.46 | 1.35-1.46 | 1.35-1.55 |
| Vicat Softening Temperature | ≥80 | ≥80 | |
| Tensile Yield Stress (Mpa) | ≥40 | ||
| Longitudinal Shrinkage Rate (%) | ≤5 | ≤5 | ≤5 |
| Flat Test | No rupture | No rupture | No rupture |
| Immersion Test | Surface unchanged after 30 min | Surface unchanged after 15 min | |
| Drop Hammer Impact Test | TIR ≤5% | TIR ≤5% | 9/10 passed |
| High-speed Impact Test | No brittle failure | ||
| Hydraulic Test | No rupture, no leakage | No rupture, no leakage | No rupture, no leakage |
| Cut Pipe Hydraulic Test | No rupture, no leakage | ||
| C-Ring Toughness Test | Toughness failure | ||
| Long-term Static Pressure Test | σLPL ≥24.5 | ||
| Implementation Standard | CJ/T272-2008 | GB/T10002.1-2006 | GB/T13664-2006 |
●Excellent toughness and impact resistance: Compared with ordinary PVC-U pipes of the same specification, the impact resistance is significantly improved, effectively resisting point loads and uneven foundation settlement.
● Improved water hammer resistance: Effectively resists water hammer, preventing damage to the pipeline during operation.
● Enhanced resistance to environmental cracking: Effectively resists external impact during installation and transportation.
● Improved transportation reliability: PVC-M's high impact resistance overcomes the susceptibility of ordinary PVC-U water supply pipes to wear, scratches, and hidden damage during loading, unloading, and transportation, effectively resisting external impacts and improving transportation reliability and safety.
● Enhanced adaptability to construction environments: PVC-M high-impact water supply pipes possess superior impact resistance and good toughness, effectively adapting to construction environments.
