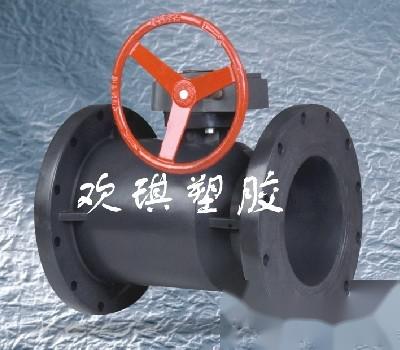

Plastic Worm Gear Ball Valve▲Plastic Worm Gear Flange Ball Valve▲Plastic PVC Worm Gear Ball Valve

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
Shanghai Huanqi Plastic - Ball valve series products: plastic socket ball valve, plastic anti-corrosion flange ball valve Q341F-10S, plastic anti-static anti-corrosion ball valve, plastic turbine ball valve, plastic pneumatic ball valve Q641, Q647, Q671, plastic electric ball valve Q941, Q971, Q947, high pressure ball valve Q61N-320, Q41N, Q41F/H, Q11N, Q81N, long-distance pipeline ball valve, low temperature ball valve DQ41F, coal powder ball valve, imported ball valve Ball valve structure diagram Ball valve standard Ball valve detailed information Ball valve model Ball valve application Ball valve price list Ball valve size Ball valve price list Ball valve working principle Ball valve installation schematic Ball valve specifications Ball valve internal structure diagram, valve body material: PPH, CPVC, PVDF, RPP, UPVC, F4, F46, sealing surface material: F, F46, N, SM, H, Y, W, G. Working pressure 1.6-50MPA, working temperature 150℃. Valve diameter DN3-DN600. Connection method: flange, clamp, welding, internal thread, clamp, sleeve. Transmission method: manual, worm gear, pneumatic, electric. Applicable media: water, oil, gas, steam, acid. Manufacturing standard: national standard GB, HG, American standard API, ANSI, Japanese standard JIS.

Installation position, height, inlet and outlet direction must meet the design requirements, and the connection should be firm and tight. All types of manual valves installed on insulated pipelines must not have the handle facing downwards. Before installation, the appearance of the valve must be inspected, and the nameplate of the valve should comply with the current national standard "General Valve Marking" GB 12220. For valves with a working pressure greater than 1.0 MPa and serving as shut-off valves on main pipelines, strength and tightness performance tests should be conducted before installation, and they can only be used after passing the test. During the strength test, the test pressure is 1.5 times the nominal pressure, with a duration of not less than 5 minutes, and the valve body and packing should have no leakage to be considered qualified. During the tightness test, the test pressure is 1.1 times the nominal pressure; the test pressure and duration should meet the requirements of GB 50243 standard, with no leakage on the valve disc sealing surface considered qualified. Sealing gaskets should be installed between the valve flange and the pipeline flange according to the pipeline design requirements. For ball valves with transmission mechanisms, they should be installed according to the product instruction manual.

pvc Polyvinyl Chloride Temperature -10°C-55°C

PP Polypropylene Temperature -20°C~90°C

UPVC Unplasticized Polyvinyl Chloride Temperature -10°C~70°C

CPVC Chlorinated Polyvinyl Chloride Temperature -40°C~95°C

PVDF Polyvinylidene Fluoride Temperature 40°C~140°C
