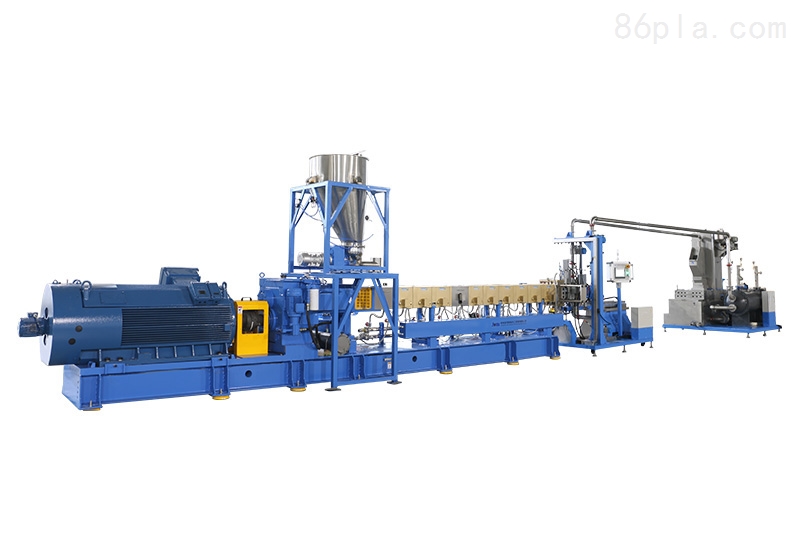

Brief Description:The plastic twin-screw granulator, by completing the granulation process of powdered materials in a wet state, significantly improves the operating conditions for granulation and subsequent processes (such as drying, packaging, etc.), typically reducing on-site dust by more than 90%.
Plastic twin-screw granulatorThe specific composition of the central extrusion system:
1. Screw: It is the main component of the extruder, directly related to the application range and productivity of the extruder, made from high-strength, corrosion-resistant alloy steel.
2, Barrel: It is a metal cylinder, typically made of alloy steel or composite steel pipe with an inner lining of alloy steel, which has high heat resistance, pressure resistance, durability, wear resistance, and corrosion resistance. The barrel works in conjunction with the screw to achieve the crushing, softening, melting, plasticizing, degassing, and compacting of the plastic, and continuously and evenly delivers the rubber compound to the molding system. Generally, the length of the barrel is 15 to 30 times its diameter, based on the principle of ensuring that the plastic is fully heated and thoroughly plasticized.
3, Hopper: The bottom of the hopper is equipped with a cutoff device to adjust and cut off the material flow, and the side of the hopper is fitted with a sight hole and calibration measuring device.
4. Die Head and Mold: The die head is composed of an inner liner made of alloy steel and an outer jacket made of carbon steel, with a shaping mold installed inside. The function of the die head is to convert the rotational motion of the plastic melt into a parallel linear motion, smoothly and evenly guiding it into the mold bushing, and imparting the necessary forming pressure to the plastic. The plastic is plasticized and compacted within the barrel, passing through a multi-hole filter plate along a specific flow path, and then flowing through the neck of the die head into the shaping mold. The core and the mold bushing are properly matched, forming a continuously narrowing annular gap, which allows the plastic melt to form a continuous, dense tubular coating around the core.
Plastic twin-screw granulatorPrecautions for use:
1. Turn on the power, set the temperature, and ensure that the heating is normal.
2. Clean the hopper and other units, as well as the water inlet and outlet pipes. Check the oil levels and lubrication status of all gears, engine oil, and high-temperature grease. The gear oil in a new machine should be replaced after half a year, and moving parts should be lubricated at least once a week.
3. When the temperature is close to the set point, prepare the material and start the main motor sequentially. The extruder's temperature must reach the set temperature before the feeding device can be opened to pour in the cleaning material or raw material to clean out any residue inside the screw until new material comes out. Then pause the extrusion, and quickly install the filter plate and die.
4. Close the die head, and after closing it, turn on the main screw motor of the pelletizer. The operator should stay away from the die head to prevent injury from a potential explosion due to hard material blockage, until the die head starts extruding filaments. Then, close the pelletizing hood and connect and secure the cutting blade assembly.
