Plastic Auxiliary Machinery-Feeding/Mixing Equipment-Metering System

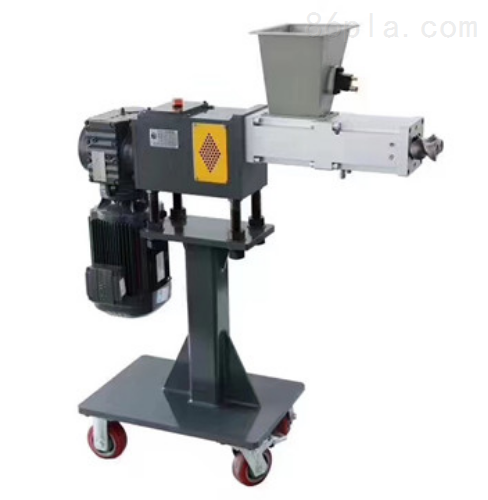

Brief description:The plastic blending side-feeding system is designed for adding color masterbatches and other additives. Some systems also have metering functions. The control systems that require metering functions are relatively complex. In contrast, a simple injection addition function is easier to implement, using a gear motor to drive a small screw (a welded part will suffice), with the outer wall made of seamless steel pipe, and the speed controlled by a variable frequency drive.
Introduction to the Plastic Side Feeding System for Blending: It is designed for adding color masterbatches and other additives. Some have metering functions. The control system that requires metering functions is more complex. In contrast, a simple addition and injection function is relatively straightforward, achieved by using a geared motor to drive a small screw (a welded part will suffice), with the outer wall made of seamless steel pipe, and speed controlled via a variable frequency drive.
Plastic blending side feeding systemMaintenance Key Points:
1. For batching and metered feeding, to ensure uniform and stable feeding and prevent material from flowing freely, it should be installed horizontally. For the continuous feeding of general materials, it can be installed at a 10° downward angle. For sticky materials and those with high moisture content, it can be installed at a 15° downward angle.
2. After installation, a clearance of 20mm should be left for movement, it should be level horizontally, and the suspension device should use a flexible connection.
3. Before the no-load test, all bolts should be tightened once, especially the foundation bolts of the vibrating electromagnet. After continuous operation for 3-5 hours, they should be retightened. During the test run, both vibrating motors must rotate in the same direction.
4. During the feeding process, the amplitude, current, and noise stability should be checked frequently, and any abnormalities found should be addressed by stopping the machine promptly.
5. The electromagnetic bearing should be lubricated once every 2 months, and it should be lubricated monthly during the high-temperature season.
