Brief Description:Plastic screw masterbatch granulator is mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid masterbatch.

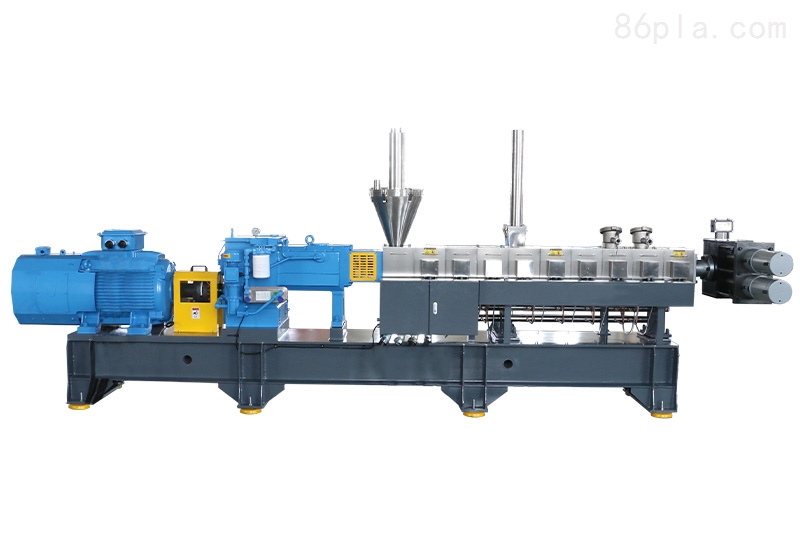

Plastic screw color masterbatch pelletizing machineIntroduction:
Mainly used for the filling, blending, modification, and enhancement of rubber and plastics and engineering resins, processing of chlorinated polypropylene and super absorbent resins, production of degradable masterbatches, polyamide condensation, extrusion in polyurethane addition reactions, granulation of carbon powder and magnetic powder, preparation of cable insulation materials, sheathing materials, low-smoke halogen-free flame-retardant PVC cable materials, and various silane cross-linking materials. Smaller models are primarily used for research and teaching.
The twin screws adopt frequency conversion speed regulation, AC motor drive, or DC speed regulation, DC motor drive. The deceleration and twin screw transmission are integrated within the same housing, making the overall dimensions compact. A safety coupling equipped with a shear pin is used to protect the screws and gearbox from damage due to overload.
In the process of starting heating, it is common to begin warming up several temperature zones. However, this method often results in the screw reaching the desired temperature before the die head does. Therefore, under such circumstances, the screw is usually kept at a constant temperature, and the machine is only started after the die head gradually reaches the set temperature. This practice is very energy-efficient.
Plastic screw color masterbatch pelletizing machinePrecautions
1. Before starting, heat for about 40 to 50 minutes first, raising the temperature to a state where it is easier to pull the motor V-belt by hand. Pull in the normal working direction 8 to 10 times, then continue heating for about 10 more minutes; at this point, continue heating because normal production requires continuous heat supplementation; adjust to different temperatures based on the varying properties of the plastic.
2. Before the equipment is put into normal operation, the mechanical temperature should be kept stable and should not be maintained at either a high or low level.
3. If the feeding is uniform, the machine's feeding speed should match the conveying speed; otherwise, it will directly affect the quality and output of the plastic pellets.
4. Before stopping, all the plastic inside the granulator screw must be emptied and cleaned.
5. When the main unit is shut down, the power supply should be disconnected, and before the next use, the head line plug must be disassembled and preheated separately.
