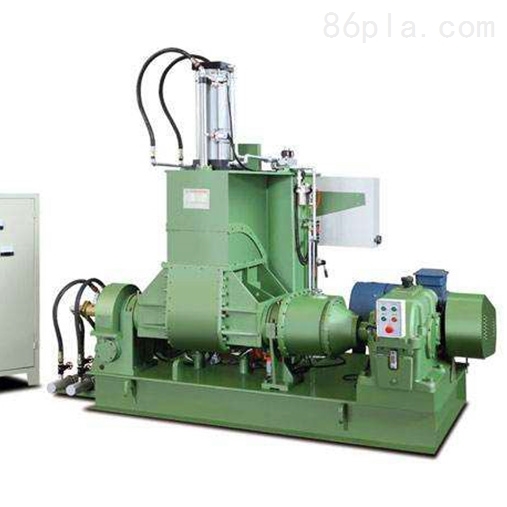

Brief Description:When the plastic mixing and masticating equipment is in operation, the two rotors rotate relatively, catching the material from the feed port and bringing it into the roll gap where it is subjected to squeezing and shearing by the rotors. After passing through the roll gap, the material hits the sharp edge of the lower plunger and is divided into two parts, which then return to the top of the roll gap along the gaps between the front and rear chamber walls and the rotors.
Plastic mixing and compounding equipmentFeatures:
The temperature control during the compounding process is the most precise. All mixing components that come into contact with the material are cooled by water, with the flow rate and volume precisely controlled by the temperature control system, keeping the temperature variation within ±3℃.
2. The leakage prevention effect during the mixing process in the mixing chamber is the best in the country, with a powder leakage prevention effect 2-3 times that of domestic products. It uses an alloy ring and sealing ring for sealing, which can automatically compensate and also be manually adjusted. This completely prevents powder leakage. The Taiwan Gaoshan sealing ring has a semi-circular structure, making it easy to replace.
3. The mixing chamber and mixing shaft are made of wear-resistant alloy materials and undergo multiple processing treatments, making them resistant to wear and breakage.
4. The gearbox is produced by a domestic gearbox manufacturing Co., Ltd., specifically designed as a hard-faced reducer for internal mixers, featuring low vibration, low noise, and smooth transmission.
5. The electrical control system is designed with a humanized approach and increased electrical capacity for easy operation, incorporating various maintenance systems.
Plastic mixing and compounding equipmentOperation:
1. Turn on the power sequentially. If heating is required, set the temperature and observe whether the heating is normal. If water cooling is used, open the inlet and outlet valves to ensure normal water flow.
2. Clean the internal mixer chamber, ensuring no hard objects such as wire are left behind. Check the oil levels and lubrication status of all gears, engine oil, and grease. Pay special attention to the oil level in the triplet oil cup, which should not be less than half full. Regularly monitor the oil level changes in the triplet; no oil consumption or excessively fast oil consumption are both abnormal (adjust the triplet knob as needed). The gear oil in a new machine should be replaced after six months. Moving parts should be lubricated at least once a week. When adding oil, do not exceed half the level of the oil sight glass, as overfilling can cause oil leakage.
3. Prepare the material and turn on the power and air pressure. Raise the pressure cover to its upper limit position, then start the main motor. After the main motor has been running for half a minute, add the prepared material, then lower the pressure cover to begin the mastication of the material.
4. If a color change is needed, please pour in cleaning material or raw material cleaner, then use a broom or wire to clean the old material from the gaps between the rotor shafts in the mixing chamber.
5. During the mastication process, the operation can be adjusted to automatic or manual based on the physical properties of the material. Materials that are too hard should not be processed in excessive quantities or sizes, as this could cause the machine to lock up or damage the main motor.
6. After the material has been masticated, first raise the pressure cover, then flip the mastication chamber. Once in position, pour out the material, then return the mastication chamber to its original position before adding the next batch of material for mastication.
7. When stopping production, first turn off the power of each function in sequence, then turn off the main power, and subsequently quickly clean the mixing chamber and thoroughly remove all dust.
