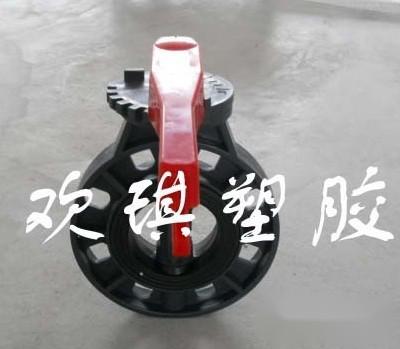

Plastic Butterfly Valve Model D71X-10S▲Plastic Lug Butterfly Valve Model▲Plastic Handwheel Butterfly Valve

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
Plastic Butterfly Valve Description D71X-10S/ Plastic Turbine Butterfly Valve D371X-10S

PVC Plastic Corrosion-Resistant Butterfly Valve/ Plastic Butterfly Valve/ Corrosion-Resistant Butterfly Valve/ Plastic Wafer Butterfly Valve/ Valve, PVC Plastic Butterfly Valve Size: DN50--DN200 MM (Inches: 2'--8'), PVC Corrosion-Resistant Butterfly Valve Pipe Diameter: 63 MM--225 MM. PVC Butterfly Valve Materials: Valve Body: PVC, Valve Plate: PP, Valve Stem: 45# Carbon Steel, Handle: PVC, Seat: NBR, TPE, EPDM, FPM (Viton A), Positioning Block: PVC. PVC Butterfly Valve Pressure: PN6--PN10 (PN0.6--PN1.0Mpa). PVC Butterfly Valve Working Temperature: 0--60 degrees Celsius. PVC Butterfly Valve Environmental Temperature: -10--+60 degrees Celsius. PVC Butterfly Valve is corrosion-resistant, has low flow loss, and occupies little space. The platform design above the PVC Butterfly Valve can be equipped with a driver or electric motor. The PVC Butterfly Valve features double-sealed valve shafts isolating medium contact components. Seat temperature range: NR (Natural Rubber) -20+82°, EPDM (Ethylene Propylene Diene Monomer) -40+125°, FPM (Viton A) (Fluoroelastomer) -23+160°. Application Range: The product can be widely used in civil construction, tap water, farmland irrigation, chemical industry, pharmaceuticals, aquaculture, aquariums, sewage treatment, shipping, and other industries. Outstanding Features: Advanced design, small switch torque, strong sealing performance. The product is environmentally friendly, with excellent acid and alkali resistance, and corrosion resistance. It has advantages such as anti-scraping, no scarring, lightweight, easy disassembly and maintenance, and long service life, making it a replacement for metal butterfly valves.

I still remember my time as a factory repairman. The raw materials produced in the factory were quite corrosive. Initially, we used some steel pipes coated with anti-corrosion materials. Of course, the effect was much better than ordinary transport pipelines after treatment. However, the effect was only temporary. In real life, plastic materials like vinyl can achieve anti-corrosion effects and are relatively cost-effective. The parts of the valves are among the areas prone to corrosion. Some rotating parts can easily stick together after being eroded by corrosive substances. As a seasoned pipeline repairman, I am quite familiar with this; we often have to replace them every month, which is not only troublesome for us but also affects the profits.

PVC Polyvinyl Chloride Temperature -10℃ to 55℃

UPVC Rigid Polyvinyl Chloride Temperature -10 °C to 70 °C

CPVC Chlorinated Polyvinyl Chloride Temperature -40 °C to 95 °C

RPP Reinforced Polypropylene Temperature -20 °C to 90 °C

PVDF Polyvinylidene Fluoride Temperature 40 °C to 140 °C
