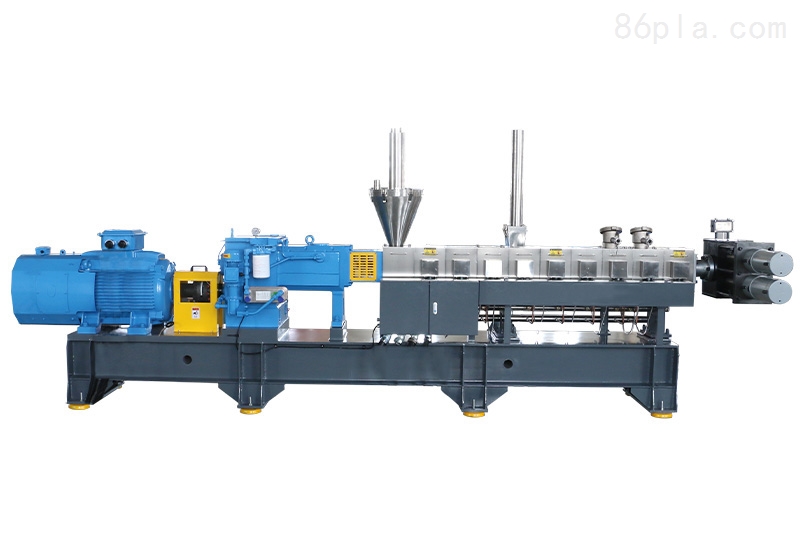

Brief Description:The plastic industry black masterbatch pelletizer is mainly used for coloring polymer materials, and it is primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid masterbatch.
Plastic industry black masterbatch pelletizing machineFeatures:
This production line integrates mixing, conveying, feeding, and extrusion, achieving automated continuous operation with high production efficiency.
2. Compact structure, small footprint and space, suitable for flat installation.
3. The production process is carried out with segmented closed-loop temperature control, where the internal mixer, feeder, and extruder each have their own heating and cooling systems, controlling their respective temperatures according to the process requirements.
4. The feeding mechanism adopts a dual-propeller design, featuring strong material intake capability. It is particularly suitable for extrusion and pelletizing of bulk materials directly from the internal mixer.
5. The barrel and screw are both made of high-quality 38CrMoAIA alloy steel, which has undergone nitriding treatment, resulting in high hardness, wear resistance, and corrosion resistance.
6. The die head adopts a manual screen changing or quick non-stop screen changing mechanism to improve production efficiency.
7. The electrical control system adopts advanced PLC control technology, combined with multiple inverters, enabling high-precision, wide-range speed adjustment for feeding, extrusion, cutting, and other multi-machine operations according to process requirements. It also features full-process interlocking, audio-visual fault alarms, and other control functions, ensuring a complete and reliable system.
Maintenance of Plastic Black Masterbatch Pelletizing Machine:
The equipment should be placed in a well-ventilated area to ensure heat dissipation from the motor, thereby extending its lifespan.
2. Lubricating oil should be regularly added to the bearings to ensure proper lubrication between them.
3. Regularly check the tool screws; after 1 hour of use, tighten the screws of the moving and fixed blades with a tool to enhance the fixation between the blades and the holder.
4. To ensure the sharpness of the cutting edge, the tool should be checked regularly to maintain its sharpness and reduce unnecessary damage to other components caused by a dull or chipped blade.
5. When replacing the blades, the gap between the moving blade and the fixed blade: for machines 20HP and above, the thinner the recycled material, the larger the gap can be appropriately adjusted.
6. Before the second start, the remaining debris in the machine room should be cleared to reduce the starting resistance.
7. The inertia cover and pulley cover should be opened regularly to clean the dust outlet below the flange, as powder from the pelletizing chamber can enter the shaft bearings.
8. The recycled stock resin pelletizing machine should be kept well grounded.
