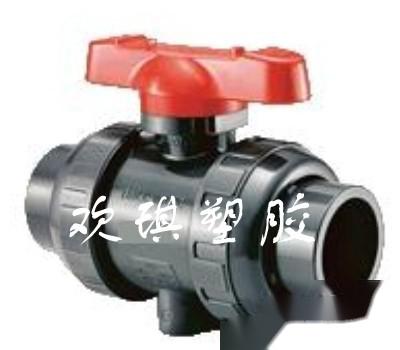

Plastic Ball Valve▲Plastic CPVC Ball Valve▲Plastic Chlorinated Polyvinyl Chloride Ball Valve DN50

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
Shanghai Huanqi Plastics - Ball Valve Series Products: plastic socket ball valve, plastic anti-corrosion flange ball valve Q341F-10S, plastic anti-static and anti-corrosion ball valve, plastic turbine ball valve, plastic pneumatic ball valve Q641, Q647, Q671, plastic electric ball valve Q941, Q971, Q947, high pressure ball valve Q61N-320, Q41N, Q41F/H, Q11N, Q81N, long-distance pipeline ball valve, low temperature ball valve DQ41F, coal powder ball valve, imported ball valve. Ball valve structure diagram, ball valve standard, ball valve detailed information, ball valve model, ball valve application, ball valve price list, ball valve size, ball valve price list, ball valve working principle, ball valve installation schematic, ball valve specification, ball valve internal structure diagram, valve body material: PPH, CPVC, PVDF, RPP, UPVC, F4, F46, sealing surface material: F, F46, N, SM, H, Y, W, G. Working pressure 1.6-50MPA, working temperature 150°C. Valve diameter DN3-DN600. Connection method: flange, clamp, welding, internal thread, clamp, sleeve. Drive mode: manual, worm gear, pneumatic, electric. Applicable media: water, oil, gas, steam, acid. Manufacturing standards: national standard GB, HG, American standard API, ANSI, Japanese standard JIS.

Installation position, height, inlet and outlet direction must meet the design requirements, and the connection should be firm and tight. All types of manual valves installed on insulated pipelines must not have handles facing downwards. Before installing the valve, visual inspection must be carried out, and the valve nameplate should comply with the current national standard "General Valve Marking" GB 12220. For valves with a working pressure greater than 1.0 MPa and serving as shut-off valves on main pipelines, strength and tightness tests should be conducted before installation, and they can only be used after passing the tests. During the strength test, the test pressure is 1.5 times the nominal pressure, with a duration of not less than 5 minutes, and the valve body and packing should have no leakage to pass. During the tightness test, the test pressure is 1.1 times the nominal pressure; the test pressure and duration should meet the requirements of GB 50243, with no leakage on the valve disc sealing surface to pass. A sealing gasket should be installed between the valve flange and the pipeline flange according to the pipeline design requirements. Ball valves with transmission mechanisms should be installed according to the product instruction manual.

pvc Polyvinyl Chloride temperature -10°C-55°C

PP Polypropylene temperature -20°C~90°C

UPVC Unplasticized Polyvinyl Chloride temperature -10°C~70°C

CPVC Chlorinated Polyvinyl Chloride temperature -40°C~95°C

PVDF Polyvinylidene Fluoride temperature 40°C~140°C
