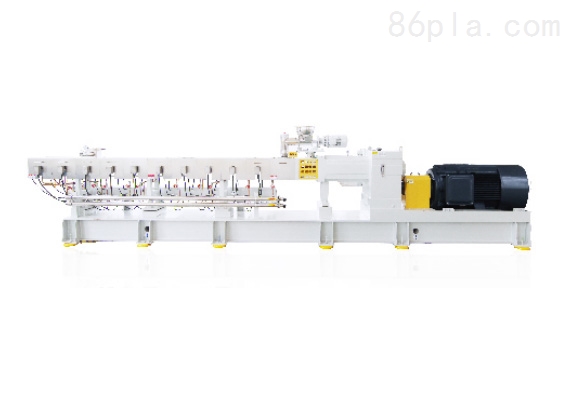

Brief Description:A twin-screw parallel extruder consists of several parts including the drive unit, feeding device, barrel, and screws. The functions of each component are similar to those of a single-screw extruder, as shown in Figure 1. The difference between a twin-screw extruder and a single-screw extruder is that the twin-screw extruder has two parallel screws placed in a barrel with an "∞"-shaped cross-section.
Twin-screw parallel extruderFeatures:
It has a wide range of applications and can be used for processing various materials.
2. Directly observe the wear condition of vulnerable parts; due to easy access, the wear degree of screw elements and barrel liners can be detected at any time, allowing for effective maintenance or replacement.
3. It possesses all the advantages of traditional equipment, achieving high output, high quality, and high efficiency.
4. Reduce production costs; when changing colors, the barrel can be quickly opened in just a few minutes for manual cleaning, thus eliminating or reducing the need for cleaning materials and saving costs.
5, High torque and high speed. Currently, the development trend of twin-screw granulation equipment is moving towards high torque, high speed, and low energy consumption. The effect of high speed is high productivity.
6. Improve labor efficiency: When repairing equipment, traditional machines often require the removal of the heating and cooling systems before the entire screw can be extracted. However, with a split twin-screw extruder, this is not necessary. Simply loosen a few bolts and turn the worm gear box handle to lift the upper half of the barrel, thus opening the entire barrel for maintenance. This not only shortens the repair time but also reduces the labor intensity.
Twin-screw parallel extruderFrequently Asked Questions and Solutions:
The main motor cannot start
1. Cause of occurrence:
Start-up procedure error.
(2) There is an issue with the main motor thread, communication failure
(3) The interlock device associated with the main motor is activated.
2. Processing Methods:
(1) Check the procedure and restart the machine in the correct sequence.
(2) Check the main motor circuit.
(3) Check if the lubricating oil pump has started, and inspect the status of the interlock devices related to the main motor; if the oil pump is not on, the motor cannot be started.
(4) Check if the emergency button has been reset.
II. Unstable Main Motor Current
1. Cause of occurrence:
Feeding is uneven.
(2) A certain heater has malfunctioned and is not heating.
(3) The screw adjustment pad is incorrect, or the phase is wrong, causing component interference.
2. Processing methods:
Check the feeder and troubleshoot.
(2) Check if all heaters are functioning properly, and replace them if necessary.
(3) Check the adjustment shim, pull out the screw to inspect for any interference.
III. Excessive start-up current of the main motor
1. Cause of occurrence:
Insufficient heating time, high torque.
(2) A certain heater is not working.
2. Treatment Methods:
Before starting the machine, manually turn the shaft. If it does not turn easily, extend the heating time or check whether each section of the heater is working properly.
IV. Poor discharge or blockage at the die head
1. Cause of occurrence:
The heater in a certain section is not working, resulting in poor plasticization of the material.
(2) The operating temperature is set too low, or the molecular weight distribution of the plastic is wide and unstable.
(3) There may be foreign objects that are not easily melted.
2. Treatment Methods:
Check the heater and replace it if necessary.
(2) Verify the set temperatures for each section, and if necessary, consult with the process engineer to increase the temperature settings.
(3) Clean and inspect the extrusion system and die head.
V. Unstable Die Head Pressure
1. Cause of occurrence:
The main motor speed is uneven.
(2) The feeding motor speed is uneven, causing fluctuations in the feeding amount.
2. Processing Methods:
Check the main motor control system and bearings.
(2) Check the feeding system motor and control system.
VI. Low lubricating oil pressure, oil pump alarm
1. Cause of occurrence:
Lubricating oil is insufficient.
(2) Pipe blockage, the filter has not been cleaned on a regular basis.
(3) Oil pump damage
2. Treatment methods:
Check and add the correct grade of gear oil.
(2) Check the oil lines and filters and clean them.
(3) Check the oil pump and replace if necessary
VII. The nylon pin is cut off
1. Cause of occurrence:
The torque of the extrusion system is too high.
(2) The main motor and the input bearing are not concentric.
2. Processing Methods:
(1) Check if any metal or other objects have entered and jammed the screw in the extrusion system. When it first occurs, check whether the preheating warm-up time or temperature increase meets the requirements.
(2) Adjust the main motor.
VIII. Sudden decrease in extrusion output
1. Cause of occurrence:
The feeding system has malfunctioned or there is no material in the hopper.
(2) The extrusion system has jammed the screw, preventing the material from passing through.
2. Processing methods:
Check the material level in the feeding system or hopper.
(2) Inspect and clean the extrusion system.
Nine, inaccurate temperature control
Cause of occurrence
The temperature controller is not functioning properly.
(2) The thermocouple is not making good contact
(3) The cooling system is not functioning properly.
2. Treatment Methods
Check the temperature control meter wiring and parameters, and if necessary, perform auto-tuning or replace the instrument.
(2) Check if the thermocouple is in good contact
(3) Check if the corresponding solenoid valves are operating normally, and ensure that the water path is unobstructed.
10. Insufficient vacuum or no effect
Causes of occurrence
Vacuum pump failure
(2) Pipe leakage, blockage
The material has not formed a closed cavity.
2. Treatment Methods
Check the vacuum pump and ensure the circulating water is flowing smoothly; the exhaust piping should not be reduced in size.
(2) Check for any leaks or blockages in the pipelines, and reinstall if necessary. Pay special attention to the seals.
(3) Check if gas is being sucked in at the opening position, and modify the screw structure if necessary.
Eleven, sudden power outage while the extruder is operating normally
Treatment method:
Immediately turn off the main switch of the extruder, and manually rotate the extruder motor by hand using the belt or a crank to discharge as much material as possible from inside the extruder, minimizing the residue in the screw barrel. If the main motor of the extruder is directly connected to the gearbox and there is no device for cranking the motor, you can also increase the cooling water of the cooling system to rapidly cool down the screw barrel and screw, preventing the material in the extruder from aging.
