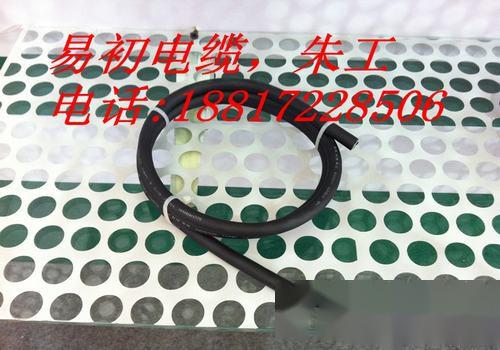

Oil-resistant shielded cable RVVYP, oil-resistant cable RVVY Oil-resistant ShieldedCableRVVYP，oil-resistantCableRVVY
ProfessionalCable sales expert: 18817228506 Fax: 021-68182790-640
Oil-resistant ShieldedCableRVVYP，oil-resistantCableRVVY
Oil-resistantCable:
Product Introduction:
Widely used in industrial machinery, transmission control systems, various industrial sensors, detection instruments, electronic devices, household appliances, electromechanical, kitchens, etc., for power supply and signal connection in harsh environments resistant to oil and so on. Excellent oil resistance and wear resistance, good toughness, cold resistance (low temperature resistance), water resistance, aging resistance, acid and alkali resistance, weather resistance, long service life, UV resistance, and many other excellent functions, suitable for dirty oil, extremely harsh low-temperature environments, installations with occasional movements without strong stress relaxation or forced guidance, as well as occasional bending movements in industrial use environments, such as machine tools, woodworking, grinding machines, etc.
Product Parameters:
Waterproof, oil-resistant, flame-retardant, regular working temperature 40 degrees.
Oil-resistantCableRVVY, oil-resistant ShieldedCableRVVYP The conductor is made of multi-stranded oxygen-free copper wire, in accordance with VDE0295CLASS 5 standard
Insulation: special mixed PVC insulation
Color: For less than 5 cores: brown, black, light blue, black or brown, yellow-green
For 0.5MM and above: black with white numbering, for 5 cores and above with yellow-green grounding wire (yellow-green optional)
Detailed parameters Rated voltage: 300/500V
TestingCable: 2500V
Operating temperature range: Fixed installation -40 degrees to 105 degrees, mobile installation -5 degrees to 70 degrees
Minimum bending radius: fixed installation: 4*Cable outer diameter, mobile installation: 15*Cable outer diameter
Corresponding UL specifications are above 16AWG with a voltage of 300/300V and 80 degrees.
Model Number of conductors Single conductor diameter φ Approximate weight KG/KM Nominal outer diameter/lower limit mm Outer diameter upper limit mm
RVVY 0.5*2C 31 0.14 55.0 6 6.4
RVVY 0.5*3C 31 0.14 65.3 6.4 6.8
RVVY 0.5*4C 31 0.14 79.5 7 7.4
RVVY 0.5*5C 31 0.14 97.6 7.7 8.1
RVVY 0.5*6C 31 0.14 116.6 8.5 8.9
RVVY 0.5*7C 31 0.14 136.9 9.2 9.6
RVVY 0.5*8C 31 0.14 162.2 10.2 10.6
