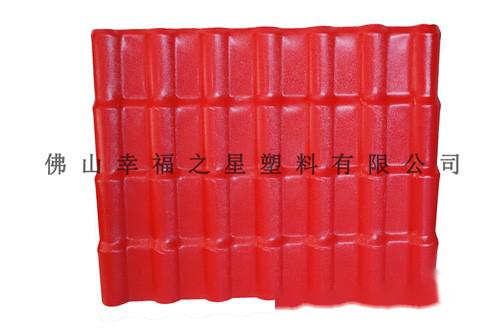

Synthetic resin tile features:One, weather resistance Synthetic resin tiles are generally made of excellent high weather-resistant engineering resins, such asASA,PPMA,pmma etc. These materials are all highly weather-resistant materials, making them have extraordinary weather resistance in natural environments. They can maintain color and physical performance stability even after long-term exposure to ultraviolet rays, moisture, heat, cold, and impact.
Two, excellent corrosion resistance
The high weather-resistant resin and the main resin have very good corrosion resistance, they will not be eroded by rain and snow to cause performance degradation. They can resist long-term corrosion by various chemical substances such as acid, alkali, and salt, making them very suitable for coastal areas with strong salt spray corrosion and areas with severe air pollution.
Three, excellent load-bearing performance
Synthetic resin tiles have very good load-bearing performance.
Four, good impact resistance and low temperature resistance
Synthetic resin tiles have good impact and low temperature resistance, a 1kg steel hammer falling freely from a height of 1.5 meters on the tile surface does not produce cracks, and after 10 freeze-thaw cycles, the product shows no hollowing, bubbling, delamination, or cracking.
Five, self-cleaning
The surface of synthetic resin tiles is dense and smooth, not easy to adsorb dust, and has a "lotus effect". The rain washes it clean like new, without the patchy stains left by accumulated dirt being washed away by rain.
Six, easy installation
This type of product generally has the following characteristics:
Large single tile area, high paving efficiency
Light weight, easy to lift and unload
Complete supporting products
Simple tools and processes
Seven, green and environmentally friendly
Synthetic resin tile has obtainedChina Environmental Labeling Product Certification, and can be completely recycled and reused at the end of its service life.
Eight, fire rating reaches B1
Meets national roof material fire requirements, achieves difficult-to-burn standard, effectively delays fire spread.
Installation requirements: The batten can be selected from square tubes, C-shaped steel, anti-corrosion wood
Batten spacing: within 660mm, arranged from bottom to top
Main tile installed against the wind according to the local wind direction, overlap one wave
First drill holes, then fix with screws, hole diameter 2mm larger than screw, generally using6mmdiameter screws
Common accessories:
A ridge tile: length1050mm, actual length960mm
B hip tile: length1050mm, actual length1020mm
C hip end cap: length150mm
D ridge end cap: length300mm, width90mm, height220mm
E drip board: length1050mm, actual length960mm
F three-way joint:160mm*180mm*180mm
G eaves board:220mm*5=1100mm(with30mminterface length)
