Nanning Cable Guard Plate Street Cable Guard Plate Workshop Cable Guard Plate
Yilan Traffic Reminder: For more information about traffic facilities products, please contact customer service or visit the official website.

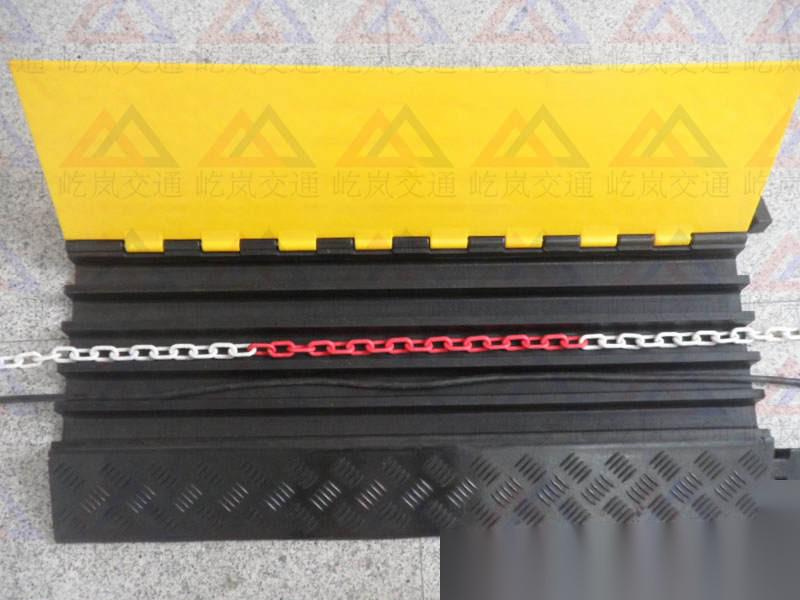

Rubber wire ducts are widely used in factory workshop aisles, hotel buildings parking lots, exhibition halls, large performance centers, sports venues and other places where vehicles pass through. Also, garden communities, government agencies, communication and power enterprise units' parking lots that need to cross the ground, large supermarkets, state-owned warehouses, personnel and cargo distribution centers, and other places where vehicles pass by.
Yilan Traffic supports Alipay transactions for all products, with no handling fees for online transfers. We only take the money after you receive the goods and are satisfied, so your money is safe!
Good service, excellent quality, Yilan Traffic, your right choice!
Type A Straight Board:
Medium double slot specifications: 1000*450*70mm Slot diameter: 50*50mm Weight: 13 kg
Double slot specifications: 800*300*45mm Slot diameter: 30*25mm Weight: 7 kg
Medium double slot specifications: 800*430*65mm Slot diameter: 50*50mm Weight: 12.5 kg
Large double slot specifications: 660*580*105mm Slot diameter: 90*90mm Weight: 19 kg
Triple slot specifications: 1000*345*50mm Slot diameter: 30*30mm Weight: 12 kg
Triple slot specifications: 800*430*50mm Slot diameter: 30*30mm Weight: 12 kg
Large triple slot specifications: 800*520*85mm Slot diameter: 65*65mm Weight: 14.5 kg
Four slot specifications: 800*500*65mm Slot diameter: 50*50mm Weight: 16.5 kg
Five slot specifications: 800*500*50mm Slot diameter: 30*30mm Weight: 12.5 kg
Type A all straight boards can be equipped with 90° corners and three-way corners.
Nanning Cable Guard Plate Street Cable Guard Plate Workshop Cable Guard Plate
Type B Straight Board:
3 slot 1000mm*310mm*55mm (3 slot) Hole diameter: 35x35mm
3 slot 900mm*500mm*75mm (3 slot) Hole diameter: 55x65mm
4 slot 770mm*485mm*65mm (4 slot) Hole diameter: 40x40mm
5 slot 900mm*500mm*50mm (5 slot) Hole diameter: 32x35mm
2 slot 900mm*620mm*100mm (2 slot) Hole diameter: 80x90mm
Type C Straight Board:
Small double slot specifications: 1000*250*50mm Slot diameter: 32*35mm Weight: 7 kg
Three slot specifications: 1000*300*50mm Slot diameter: 35*32mm Weight: 9 kg
Large double slot specifications: 900*580*90mm Slot diameter: 80*95mm Weight: 22 kg
Three slot specifications: 900*500*85mm Slot diameter: 70*65mm Weight: 15 kg
Four slot specifications: 900*500*60mm Slot diameter: 40*45mm Weight: 15 kg
Five slot specifications: 900*500*50mm Slot diameter: 30*40mm Weight: 14 kg
Medium single slot specifications: 1000*260*70mm Slot diameter: 50*70mm Weight: 8.5 kg
Large single slot specifications: 1000*580*120mm Slot diameter: 125*100mm Weight: 22 kg
Company statement: Defective cable duct plates will never leave the factory, quality control is strict
