Plastic Auxiliary Machinery-Feeding/Mixing Equipment-Metering System
Brief Description:The multifunctional side-feeding system is designed for adding color masterbatches and other additives. Some of these systems have metering functions, which require more complex control systems. In contrast, a simple injection addition function is relatively straightforward, involving a small screw (a welded part will suffice) driven by a gear motor, with the outer wall made of seamless steel pipe, and speed controlled by a variable frequency drive.

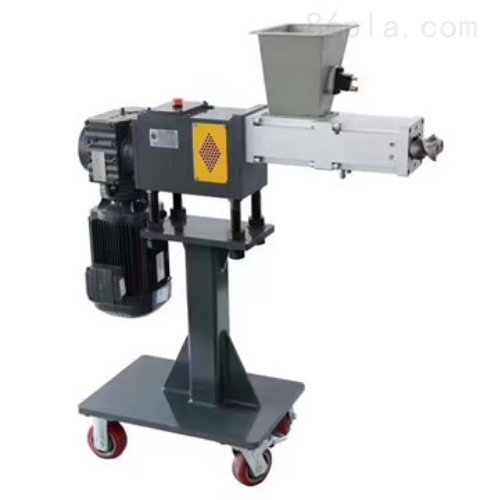

Introduction to the Multi-functional Side Feeding System for Compounding:It is designed for adding color masterbatches and other additives. Some have metering functions. The control system that requires metering functions is more complex. The simple addition and injection function is relatively simpler, achieved by driving a small screw (a welded part will suffice) with a geared motor, using seamless steel pipe for the outer wall, and adjusting the speed through a variable frequency drive.
Maintenance Key Points:
1. For material dosing and metered feeding, to ensure uniform and stable feeding and prevent material from flowing freely, it should be installed horizontally. For the continuous feeding of general materials, it can be installed at a 10° downward inclination. For sticky materials and those with higher moisture content, it can be installed at a 15° downward inclination.
2, After installation, a clearance of 20mm should be left for free movement, and it should be level horizontally. The suspension device should use a flexible connection.
3. Before the no-load test, all bolts should be tightened once, especially the foundation bolts of the vibrating electromagnet. After continuous operation for 3-5 hours, they should be retightened. During the test run, both vibrating motors must rotate in the same direction.
4. During the feeding process, the amplitude, current, and noise stability should be checked frequently; if any abnormalities are detected, the machine should be stopped immediately for handling.
5. Lubricating oil should be added to the electromagnetic bearings every 2 months, and once a month during high-temperature seasons.
Multifunctional Side Feeding SystemCommon Faults:
Check the equipment control panel for any issues, such as the parameters of the feeder, and whether the suction and discharge times are correct. If there is a problem here, it might not be able to suction materials properly, and changes should be made promptly to resolve the issue.
2. Check the pneumatic pump to see if its compressed air source pressure meets the relevant regulations. In most cases, the air source pressure for a pneumatic pump is 6-7 MPa. If the pressure does not meet the requirements, it should be checked whether the air source needs to have its ventilation piping replaced.
3. The inability to properly draw in material may also be due to disassembly activities of the machine, where air leakage occurs at the clamp between the top cover and the barrel, thus preventing normal material drawing operations.
4. Open the top cover, remove the filter plate, and observe whether there is too much dust or any clumping on the filter element. These issues can lead to improper suction. To resolve this, simply clean it with compressed air.
