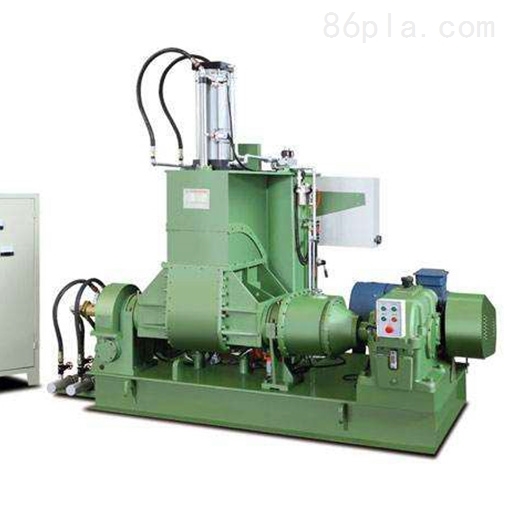

Multifunctional Plastic Mixer and Kneader
Plastic Auxiliary Machinery-Feeding/Mixing Equipment-Plastic Internal Mixer
Expand
Product Content
Category
Plastic Auxiliary Machinery-Feeding/Mixing Equipment-Plastic Internal Mixer

Brief description:When the multifunctional mixing and plasticizing machine is in operation, the two rotors rotate relatively, gripping the material from the feed port and bringing it into the roll gap where it is subjected to squeezing and shearing by the rotors. After passing through the roll gap, the material hits the sharp edge of the lower ram and is divided into two parts, which then return to the top of the roll gap along the gaps between the front and rear chamber walls and the rotors.

  Multi-functional Mixing and Plasticizing Internal MixerIntroduction:

A closed-type plasticizing machine, mainly used for the mixing of plastics and other materials. In contrast, there is an open mill. A conventional internal mixer has a mixing chamber with two specially shaped steel rotors inside. The rotors are hollow and can be heated by steam. At the top of the mixing chamber, there is a hydraulically operated ram that serves as a feed port. When the ram is opened, materials can be added, and then the ram presses down on the material. The two rotors rotate, causing the material to undergo rotational, stretching, and shearing movements. Due to friction, the material heats up and is further heated by the heating device set outside the mixing chamber. During this process, the material is plasticized. Once the material reaches a certain degree of plasticization, the discharge port at the bottom of the mixing chamber opens to release the material for further processing, such as calendering.

Features:

The temperature control during the compounding process is the most precise. All the internal mixing components that come into contact with the material are cooled by circulating water, with the flow rate and volume precisely controlled by the temperature control system, ensuring that the temperature variation is within ±3℃.

2. The leakage prevention effect during the mixing process in the mixing chamber is the best in China, with a powder leakage prevention effect 2-3 times better than domestic products. It uses an alloy ring and sealing ring for sealing, which can automatically compensate and also be manually adjusted. This completely prevents the occurrence of powder leakage. The Taiwan Gaoshan sealing ring has a semi-circular structure, making it easy to replace.

3. The mixing chamber and mixing shaft are made of wear-resistant alloy materials and undergo multiple processing treatments, making them resistant to wear and breakage.

4. The gearbox is produced by a domestic gearbox manufacturing Co., Ltd., and it is a specialized hard-faced reducer for the internal mixer, featuring low vibration, low noise, and smooth transmission.

5. The electrical control system is designed with a human-centric approach and increased electrical capacity for ease of operation, incorporating various maintenance systems.

  Multi-functional Mixing and Plasticizing Internal MixerPurchasing Precautions:

1. The material and angle of the rotor

2. Design of Shaft Seals and Internal Mixers

3. Material of the phenolic ring

4, Check the dispersion effect of your material

5. The level of noise

6, After prolonged use, will the gearbox start to leak oil?
