Brief Description:Multifunctional material extrusion granulation equipment is mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.

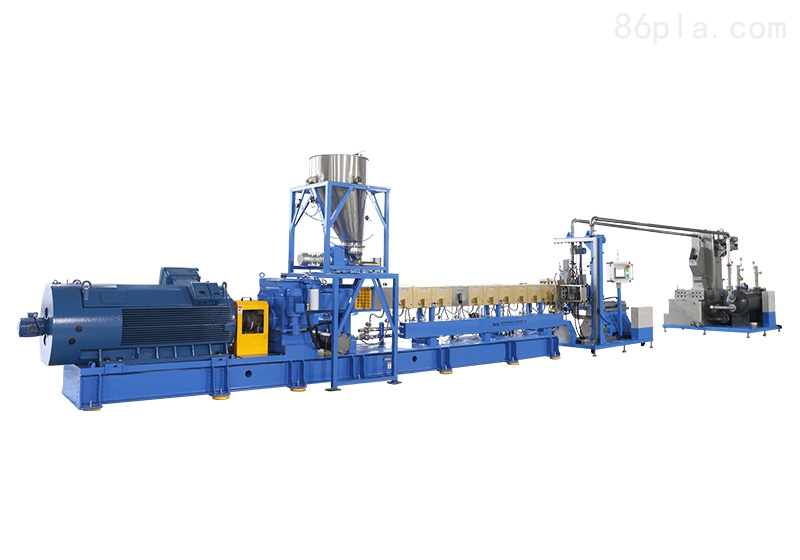

Multifunctional Material Extrusion Pelletizing EquipmentIntroduction:
The internal structure of the machine largely depends on the design principles, and it can be said that technical elements influence its internal structure. The internal structure, in turn, serves as the foundation for the external form, or in other words, the external form is the outward manifestation of the internal structure. This relationship is particularly evident in the exterior design of box-type parts.
In addition to the internal structure, there is an inclusive relationship between the internal structure and the external form, with the external form sometimes being a structural design in itself. Given that the primary work of industrial design is manifested in the appearance of the equipment, the structural and shape design of the exterior components are very closely related.
In the degradable material modification pelletizing machine, the change in screw speed is achieved by adjusting the motor speed. The drive motor typically rotates at full speed of about 1750 rpm, which is too fast for an extruder screw. If it were to rotate at such a high speed, it would generate too much frictional heat and the plastic's residence time would be too short to produce a uniform, well-mixed melt. The typical reduction ratio should be between 10:1 and 20:1, with the first stage using either gears or pulleys, but the second stage uses gears and positions the screw at the center of the large gear. For some slow-running machines, there may be three stages of reduction, with the maximum speed possibly as low as 30 rpm or lower (with a ratio up to 60:1). On the other hand, some long twin-screws used for mixing can operate at speeds of 600 rpm or faster, thus requiring a very low reduction ratio and more intensive cooling.
Multifunctional Material Extrusion Pelletizing EquipmentFeatures:
This production line integrates mixing, conveying, feeding, and extrusion, achieving automated continuous operation with high production efficiency.
2. Compact structure, small footprint and space, suitable for flat installation.
3. The production process employs segmented closed-loop temperature control, with the internal mixer, feeder, and extruder each having their own heating and cooling systems, controlling their respective temperatures according to the process requirements.
4. The feeding mechanism adopts a dual-paddle screw design, featuring strong material intake capability. It is particularly suitable for extrusion and pelletizing of lump materials directly mixed by an internal mixer.
5. The barrel and screw are both made of high-quality 38CrMoAIA alloy steel, which has been nitrided for high hardness, wear resistance, and corrosion resistance.
6. The die head adopts a manual screen changing or quick non-stop screen changing mechanism to improve production efficiency.
7. The electrical control system adopts advanced PLC control technology, combined with multiple inverters, enabling high-precision, wide-range speed adjustment for feeding, extrusion, cutting, and other multi-machine operations according to process requirements. It also features full-process interlocking, audio-visual fault alarms, and other functional controls, ensuring a complete and reliable system.
