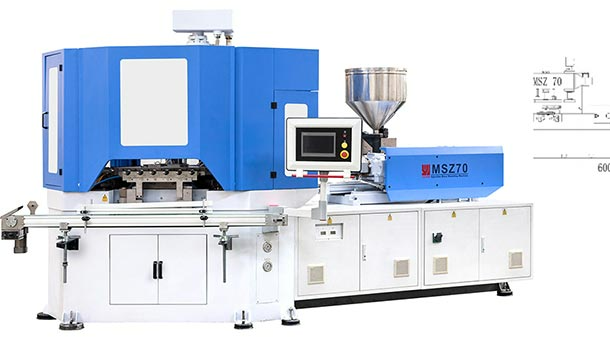

MSZ70 Injection Blow Molding Machine
Plastic Machinery-Injection Molding Machine-Horizontal Injection Molding Machine
Expand
Product Content
Category
Plastic Machinery-Injection Molding Machine-Horizontal Injection Molding Machine

Technical Features

  • The injection and blow stations both use a three-cylinder mold locking structure, ensuring fast mold opening/closing speed, short production cycle, and high efficiency
  • Servo dual-oil circuit hydraulic drive system for precise control, saving over 25% energy
  • Triangular crossbeam structure with high rigidity and stability
  • Linear guide injection unit with low resistance and high precision
  • Pneumatic flipping for safety and cleanliness
  • High versatility, compatible with MSZ60 molds

Optional Features

  • Electric pre-plasticizing, enabling synchronous pre-plasticizing
  • Electric mold release flipping, energy-saving and clean
  • Electric rotary table with high rotary positioning accuracy

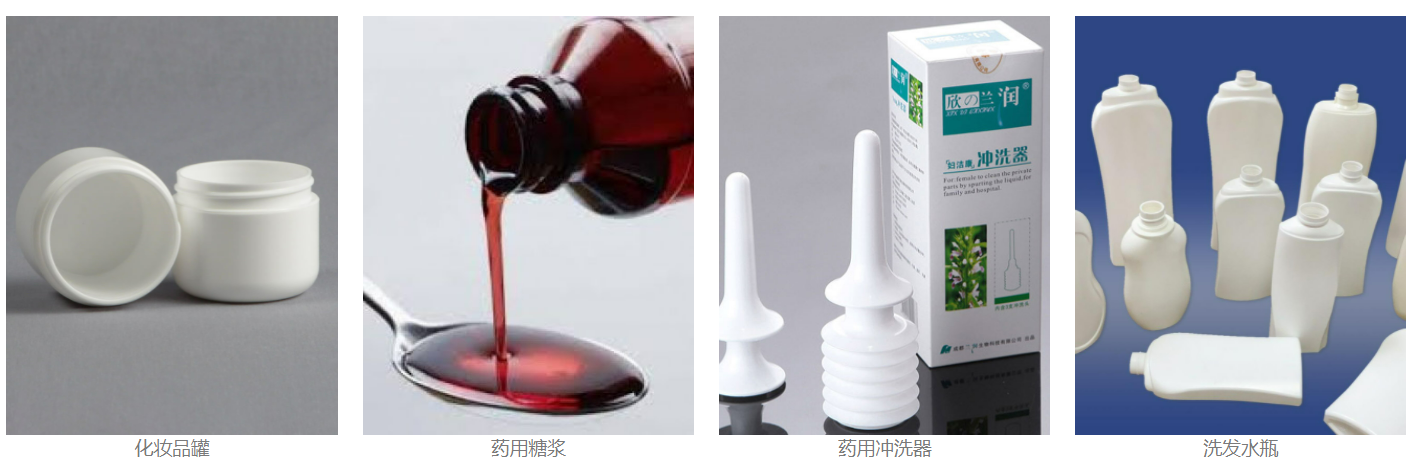

Application Areas

Machine Accessories

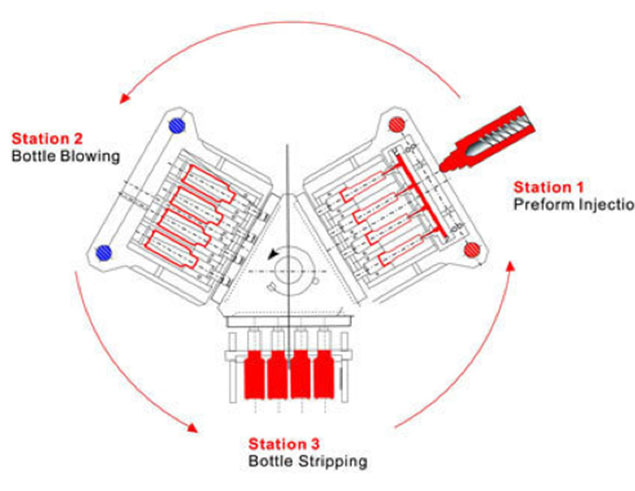

Processing Principle

An injection blow molding machine is a specially designed machine with a rotating three-station indexer. After injection, the parison is transferred to the blow station, then stripped off for further processing such as cleaning or conveying to the filling station. It is suitable for materials like PE, PP, PS, SAN, EVA, COC, PEEK, TPU, PETG, PET, with bottle capacities ranging from 1ml to 1000ml. The bottles have perfect neck finishes, strictly controlled body thickness, and weight, making them ideal for high-quality packaging in pharmaceuticals, cosmetics, household goods, and food industries.

Main Technical Parameters

Injection UnitUnitMSZ70
Screw Diametermm5050
Screw L/D Ratio23:123:1
Maximum Shot Weight (HDPE)g298360
Screw Speedrpm10-235
Barrel Heating PowerKW10.8
Clamping System
Injection Clamping ForceKN750
Blow Clamping ForceKN89
Maximum Platen Sizemm800×390
Minimum Mold Thicknessmm280
Mold Heating PowerKW6
Ejection System
Ejection Strokemm270
Cycle Time (Empty Run)sec3.5
Drive System
Drive MotorKW30
System PressureMpa15
Product Size Range
Product Volumeml5-800
Product Heightmm≤220
Product Diametermm≤100
Other
Compressed Air PressureMpa1
Compressed Air Flow RateM³/min≥0.8
Cooling Water Flow RateM³/h5
Rated Total Power (including mold heating)KW46.8
Machine DimensionsM4.06×1.8×2.45
Net Weight of Equipmentton9
