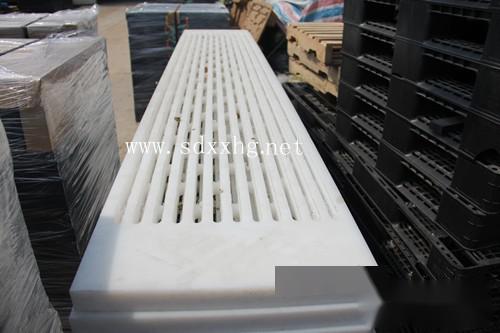

Manufacturer Direct Sales UHMWPE Water Absorption Tank Panel Vacuum Tank Cover UHMWPE Vacuum Tank Panel UHMWPE Water Absorption Tank Cover UHMWPE Water Absorption Tank Panel Vacuum Tank Cover Panel
The polyethylene water absorption tank panel has physiological cyclicality and adaptability, is non-corrosive, has high mechanical strength, low friction coefficient, and uniform dehydration, which can greatly extend the service life of the panel and the wire mesh.
Using "the king of plastics" UHMWPE as the raw material, this material still maintains a certain mechanical strength when the molecular weight exceeds 500,000, and even at -70 degrees, it has a considerable impact strength..
Brand: Jiujiang, Ticona (Germany)Molecular Weight: Ranges from 3 million to 9 million.
Color: Natural color is white; other colors can be processed.
Specifications: Custom processing according to customer requirements.
Packaging: Waterproof pallets.
Company Purpose: Shandong Ningjin Xinxing Chemical Co., Ltd. adheres to the business philosophy of "Quality, Continuous Innovation, Customer First, Pursuit of Excellence" and "Professionalism, Integrity, Pragmatism" to better win economic benefits for users.
More and more paper machine manufacturers are replacing traditional materials with UHMWPE sheets as water absorption tank panels due to their significant advantages and functions. Below are all the advantages of UHMWPE water absorption tank panels:
(1) High hardness, good wear resistance, and long service life.
(2) Low friction coefficient with polyester mesh, resulting in less wear on the mesh.
(3) Can significantly reduce the driving load of the mesh section, thus reducing energy consumption (more than 1/3 reduction in energy consumption of the mesh section).
(4) Performance in flatness and overall rigidity is significantly improved compared to ceramic strip embedded water absorption tank panels.
(5) Good processability, capable of manufacturing water absorption tanks of various hole types.
(6) Due to its good processability, it is particularly suitable for use in large paper machines over 3150.
(7) Lower cost compared to solid ceramic or ceramic-embedded water absorption tanks.
Features and Performance:
1. UHMWPE sheets have the best wear resistance among plastics, and the higher the molecular weight, the better the wear and impact resistance of the material;
2. The impact strength of UHMWPE sheets is among the highest of existing plastics, remaining relatively high even at 70℃;
3. Self-lubricating, low friction coefficient, energy-saving, with a wax-like feel.
4. Extremely low water absorption rate. Therefore, its physical and mechanical properties are not affected by the humidity factors in the working conditions.
5. UHMWPE sheets are chemically stable and can resist corrosion from various corrosive media such as acids, bases, salts, and organic solvents within a certain temperature and concentration range.
6. UHMWPE sheets are odorless, non-toxic, and non-corrosive, with physiological cyclicality and adaptability.
7. Non-adhesive;
8. When the molecular weight of high-density polyethylene exceeds 500,000, the embrittlement temperature drops to 140℃. UHMWPE can even be used under liquid nitrogen, with a usage temperature down to -269℃, still retaining certain mechanical strength.
This product introduction is not detailed enough, please call for consultation. We sincerely look forward to your call...
