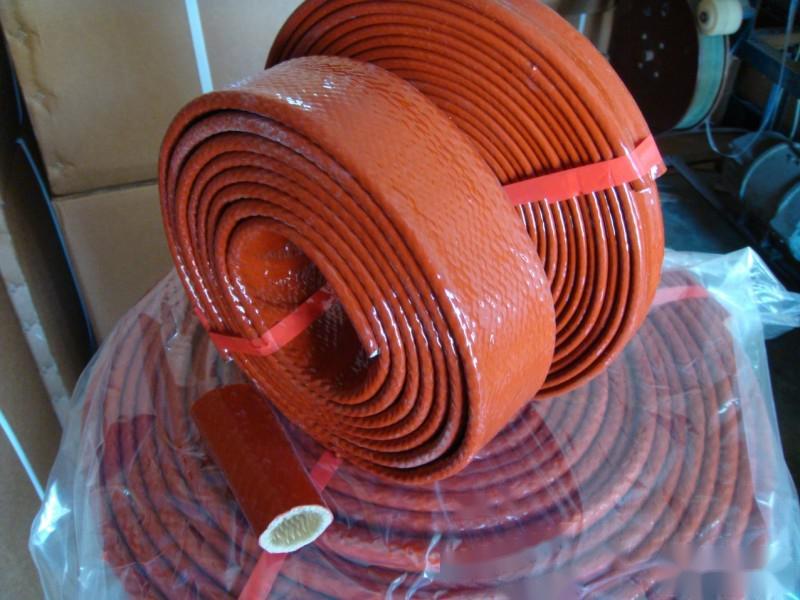

Product Name: Haotian Brand Hydraulic Protective Sleeve

Specification: Inner diameter 6.5mm-130mm, each length 15M, 20M, 100m (customizable), seamless.

Packaging: 20M/roll (3 rolls/box)

Long-term operating temperature: 300-500℃ Instantaneous can reach: 1300℃

Note: Ningguo City, Anhui Province is a domestic R&D and production base for thermal insulation sleeves! The quality has been recognized by customers at home and abroad.

Haotian Brand (Coated Type) Hydraulic Protective Sleeve is widely used in high-temperature areas of industries such as steel, automotive, shipbuilding, aerospace, metallurgy, electromechanical, petrochemical, chemical, military, national defense, scientific research, and other industries. It protects cables, fluid pipelines, rolling mill cables, oil pipes, saw cutting edge cables, generators, electrical voltage equipment, large constructions, hydraulic systems, automotive wiring harnesses, exhaust pipes, and more.

High Temperature Sleeve Manufacturing Process:

Haotian Brand Hydraulic Protective Sleeve is woven from special alkali-free quartz fiber yarn, coated with organic high-temperature resistant silicone resin, and subjected to high-temperature vulcanization. It has:flame retardant, thermal insulation, heat preservation, electrical resistance, softness and corrosion resistance, etc.

Haotian Brand Hydraulic Protective Sleeve can provide long-term, reliable insulation protection in high-temperature environments of 300℃, protecting against radiation and heat waves. This sleeve can also be made into a split (detachable) style with flame-retardant imported Velcro and special fireproof high-temperature thread according to customer requirements, making it convenient for future inspections. Different molding methods greatly facilitate the needs for maintenance and emergency repairs of various specifications and conditions on the production site. Installation is simple and saves time; just slip it on and secure both ends with "clamps", or wrap both ends with high-temperature resistant tape for fixation.

Dielectric strength: Depending on the wall thickness, withstand voltages can reach from 10KV to 30KV.
Color: Red, black, yellow, blue, gray, etc. Generally iron red, but can be made in other colors upon customer request.

Anhui Haotian Brand Hydraulic Protective Sleeve is made of environmentally friendly materials, dust-free, non-toxic to the human body, and will not cause any allergic reactions. The structure is more scientific, from the outer layer's temperature resistance, wear resistance, flame retardancy, thermal insulation to the interlayer's waterproof, oil/gas resistance, insulation, and then to the inner layer's temperature resistance, heat preservation, and flame retardancy, significantly improving the product's protective effect in high-temperature areas, extending the continuous working time of high-temperature equipment, achieving energy saving and consumption reduction, and lowering the operational maintenance costs for enterprises.

Wall Thickness: (Generally from 1mm to 5mm) Excellent resistance to molten steel or other high-temperature liquids: outstanding! Special wall thickness (according to customer requirements) can be specially customized.

Inner diameter (mm): Φ6.5mm--Φ100mm Inner diameter tolerance (mm) wall thickness and tolerance (mm) m/roll.
