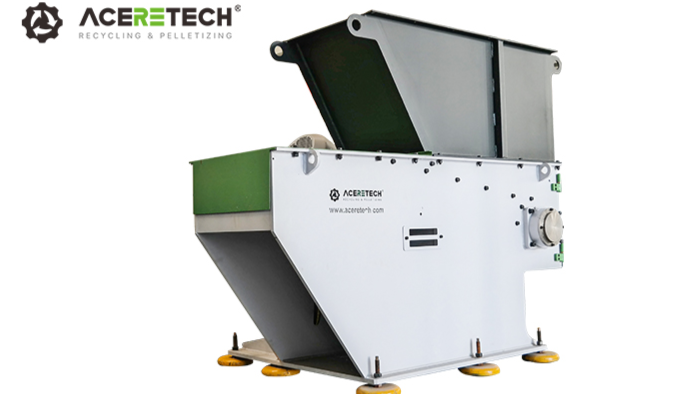

LS Series High-Quality Single-Shaft Lightweight Shredder

LS Series High-Quality Single-Shaft Lightweight Shredder

[Product Description]

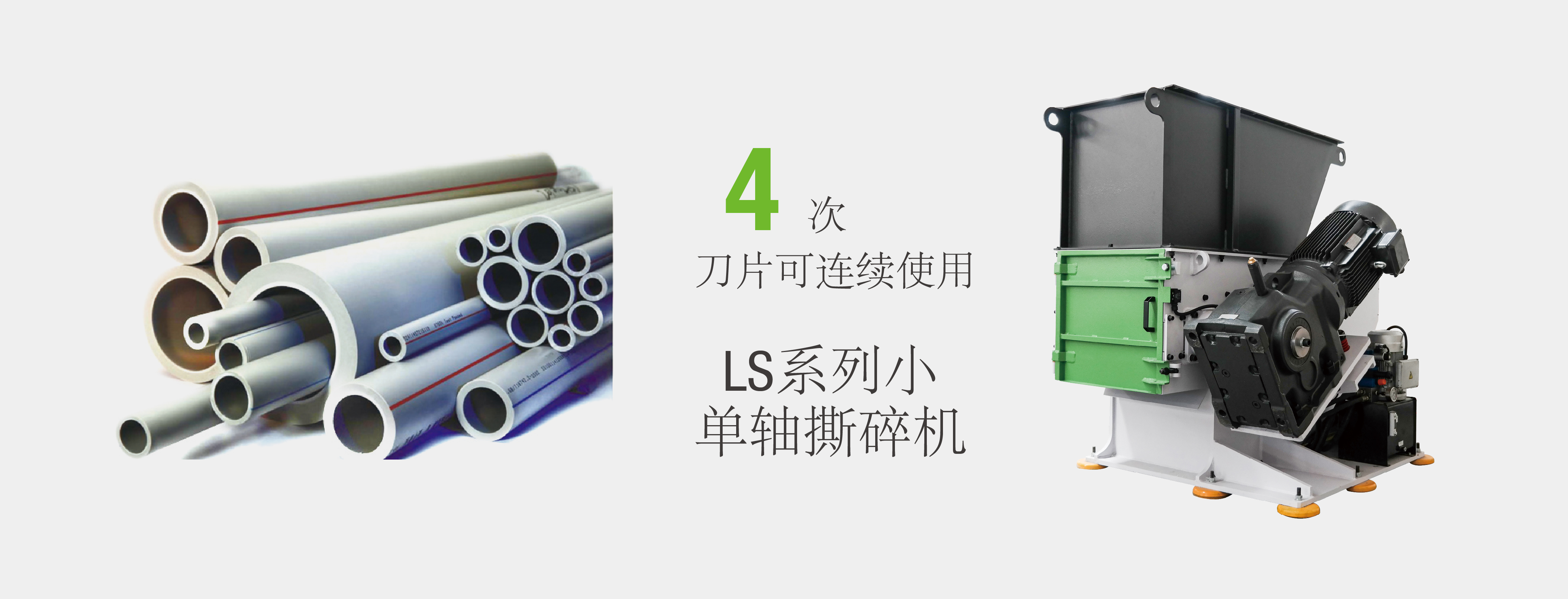

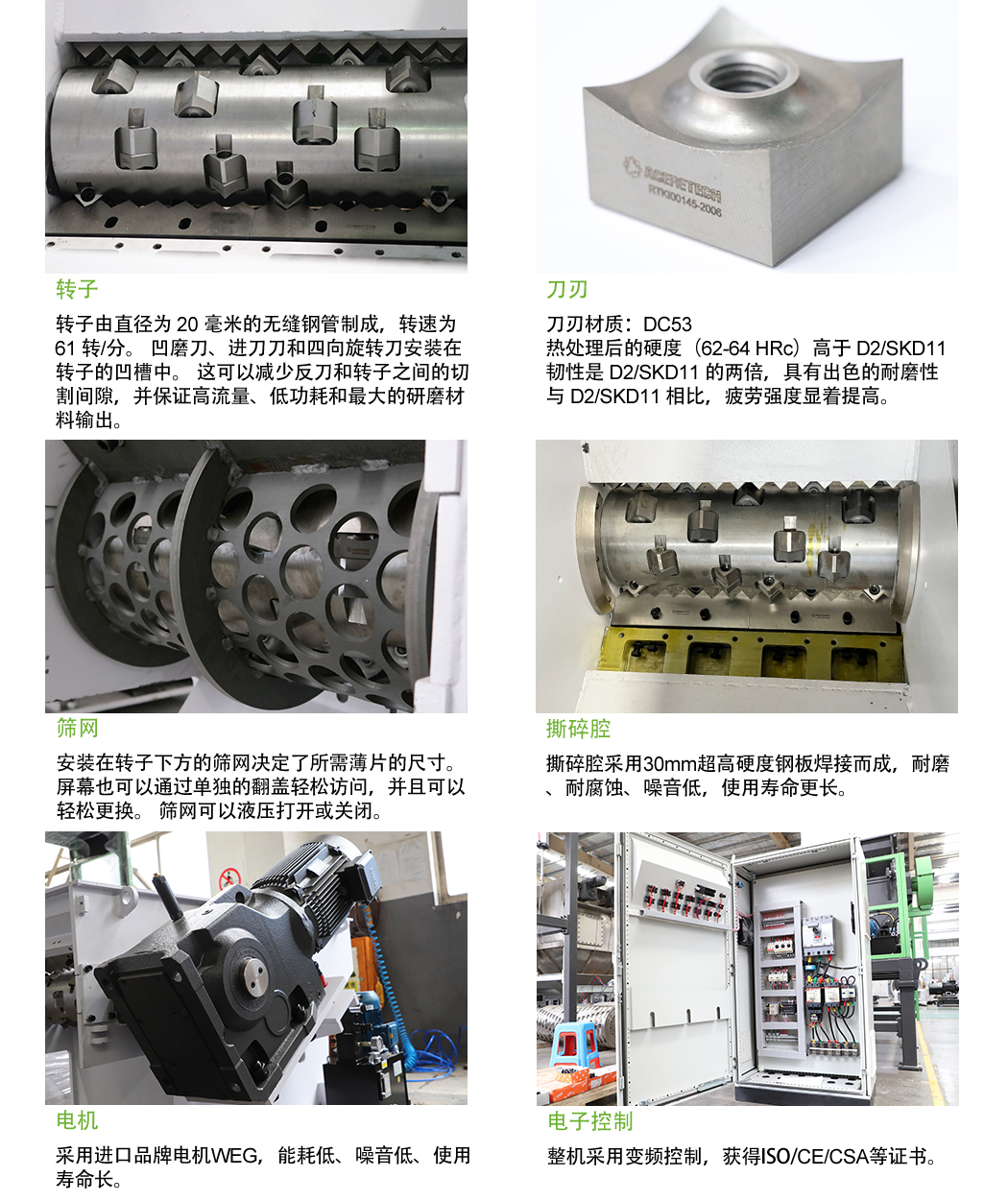

The LS series single-shaft lightweight shredder is specifically designed for small-sized and thin-walled plastic waste products. This series of shredders features tangential feeding, eliminating the need for a hydraulic feeding system. It comes with external bearings and an E-type smooth rotor, available in rotor widths of 600mm and 800mm, driven by a reducer. The rotor knives are mounted on a movable knife holder on the rotor. The rotor knives are square-shaped with a central groove, allowing each knife to be used alternately at four corners, providing up to four continuous uses per knife. The ultra-low speed of 60rpm, combined with the compact design of the shredder, ensures quieter operation when shredding materials. The plug-and-play intelligent control system guarantees that the equipment is always ready for use. Compared to larger shredders, the LS series occupies less space, is more mobile, and easier to maintain.

[Applications]

The LS series shredders are designed for small to medium-sized parts, such as:

Small-sized and thin-walled pipes.

Waste hollow, sheet, and profile materials from plastic production.

Lumps and purgings from injection molding.

[Technical Specifications]

[Product Details]
