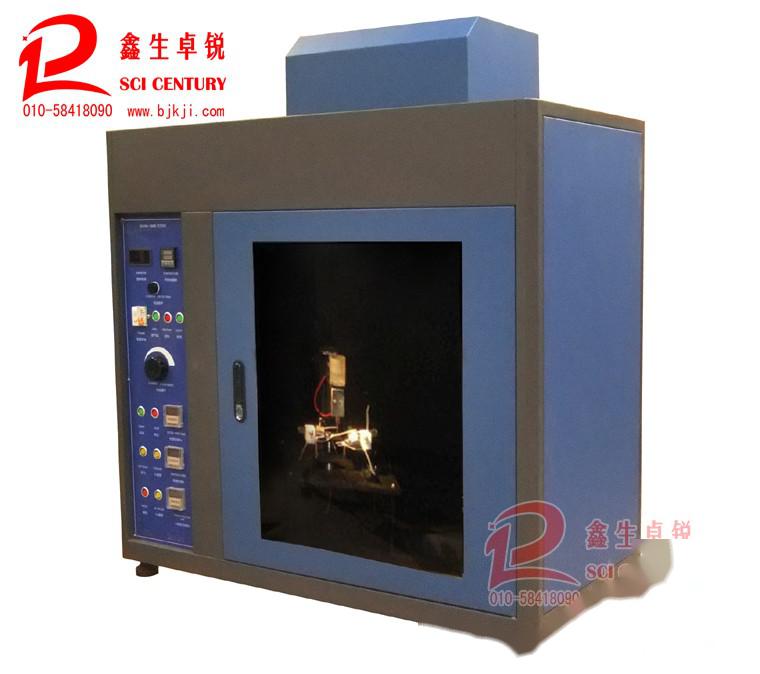

LDQ-2 Leakage Tracking Tester

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
```html

LDQ-2Leakage Tracking Test Instrument

1. Scope of Use

Measures the relative tracking resistance of solid electrical insulating materials when subjected to an electric field at a voltage of600 V while exposed to water containing impurities.

When voltage is applied between specified electrode devices placed on the surface of the material, and the electrolyte drips between the two electrodes at specified time intervals, tracking may occur under these test conditions. The number of droplets required to cause material failure increases as the applied voltage decreases, and tracking does not occur below a certain threshold. Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd.
Phone: 18513498889
QQ: 2028696743
Phone: 010-58418090
Fax: 010-58043777
Website: www.bjkji.com
Address: No. 158, Science Park, Haidian District, Beijing
Main projects: Oxygen index tester / Horizontal vertical combustion tester / Building material combustibility test furnace / Building material non-combustibility test furnace / Building material smoke density tester / Large panel method fire-retardant coating tester / Initial drying cracking resistance test device / Electronic testing machine / High and low temperature test chamber / Low temperature freeze-thaw test chamber / Constant temperature and humidity chamber / Cigarette paper smoldering performance tester, hardness tester, thickness gauge, concrete instruments, cement testing instruments, mortar testing instruments, slurry testing instruments, geotechnical testing instruments, asphalt testing instruments, highway aggregate instruments, waterproof material instruments, highway rock instruments, pavement testing instruments, pressure testing machine maintenance room instruments and laboratory consumables, etc.

When the material does not track at high test voltages, varying degrees of corrosion may occur, and the depth of corrosion can be measured. Certain materials may burn during the test.

2. Product Features

The leakage tracking test device is a specialized testing instrument designed and manufactured according to the requirements of standards such as IEC60695, GB4207/IEC60112, etc. It is suitable for determining the leakage tracking index and resistance to leakage tracking index of solid insulating materials under humid conditions, featuring simplicity, accuracy, reliability, and practicality.

3. Main Technical Parameters

1.Electrode Material: Test Electrode - Platinum, Electrode Connecting Rod - Copper (Purity of Platinum reaches standard requirement of 99%)

2.Electrode Size: (2mm ± 0.1mm) × (5mm ± 0.1mm) × (40mm ± 5mm)

3.Platinum Electrode 12mm, 30°±2° SlopeQQ: 2028696743

4.Electrode Distance: 4.0mm ± 0.01mm, Angle 60°±5°

5.Electrode Pressure: 1.00N ± 0.01N

6.Test Liquid Resistance: A Liquid 0.1%NH4Cl, 3.95 ± 0.05Ωm; B Liquid 1.98 ± 0.05Ωm

7.Droplet Device: No adjustment needed during testing, simple operation

8.Droplet Height: 35mm ± 5mm ( Adjustable )

9.Droplet Time: 30s ± 0.01s ( Better than standard ) ( Digital display, preset adjustable )

50Droplet Time 24.5min ± 2min

10.Droplet Count: 1 ~ 9999 ( Digital display, preset )

11.Test Wind Speed: 0.2m/s ( New standard )

12.Test Voltage: 100V ~ 600V ( 25V gradation, adjustable )

13.Power Voltage Drop: 1.0A ± 0.1A, when 8%

14.Tracking Judgment: 0.50A ± 10%, 2.00s ± 10%

15.The applied voltage is adjustable between 100 ~ 600V ( 48 ~ 60Hz ) and the short circuit current is 1.0 ± 0.0001A ( Better than standard 0.1A ) with a voltage drop not exceeding 10%;

16.Exhaust Hole: Ø100mm

17.Environmental Conditions: Temperature 0~40℃ Relative Humidity: ≤ 80%  No obvious vibration or corrosive gases present

18.When the short circuit current in the test circuit exceeds 0.5A for 2 seconds, the relay operates to cut off the current, indicating that the test specimen is unqualified;

19.Test Power Supply: 220V 0.6kVA 50-60Hz

20.Dimensions: Width 1160mm × Depth 600mm × Height 1295mm

21.Combustion Test Area Volume: 0.5m3, Width 900mm × Depth 560mm × Height 1010mm, Background black, Background illumination ≤ 20Lux
