Guangzhou Zhunli Technology Co., Ltd. 【✉ 13539761159@163.com】 provides direct supply of LAPPKABEL OLFLEX CLASSIC 110 flexible cables. Suitable for machine tool manufacturing, complete equipment installation projects, painting workshops, power plants, refrigeration equipment, office automation equipment, and data processing systems. LAPPKABEL STUTTGART OLFLEX CLASSIC 110 control cable
Oil-resistant PVC control cable【ÖLFLEX® CLASSIC 110】oil-resistant PVC control cable, VDE registered, suitable for a variety of application environments, available in multiple standard lengths, and can be cut according to customer requirements; complete specifications, with up to 100 cores
VDE 7030 standard product, factory monitoring accepted, over 140 materials, complete specifications to meet your equipment needs
Application range: suitable for fixed installation and occasional bending situations without tensile load when moving freely and non-continuously, suitable for dry or humid spaces subject to moderate mechanical loads, suitable for torsional applications, typical application scenarios include the interconnection area inside wind turbines (WTG), suitable for power drag chains with a travel distance not exceeding 5 meters, bending cycles can reach between 200,000 to 1,000,000 times, including the following specifications: conductor cross-section 0.5 to 2.5mm², 2-core to 7-core

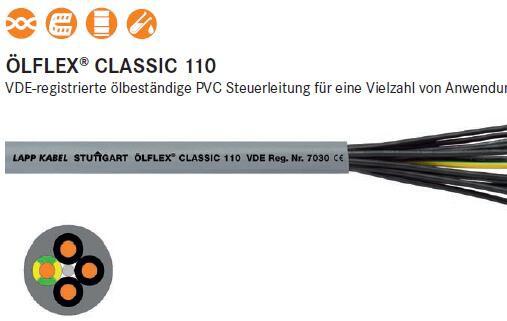

Cable structure: multi-stranded fine copper wire bundle soft conductor; PVC insulation LAPP P8/1; core wire layer twisted, PVC outer sheath, gray (RAL 7001)
Technical standards: VDE registration number 7030 for the following sizes: below 2.5 mm²: 2 - 65 cores, above 4 mm²: 2 - 7 cores, above 25 mm²: 2 - 5 cores
Contact us:
Guangzhou Zhunli Technology Co., Ltd.
Address: Room 144-338, Huangcun Avenue, Tianhe District, Guangzhou
Email: 13539761159@163.com \ 15917361053@163.com
Postal code: 510000
Phone: 020-62208903
QQ: 1918677898
Contact person: Engineer Liu
Partial material model specifications:
1119752 OLFLEX CLASSIC 110 2X0,5
1119753 OLFLEX CLASSIC 110 3X0,5
1119754 OLFLEX CLASSIC 110 4X0,5
1119755 OLFLEX CLASSIC 110 5X0,5
1119757 OLFLEX CLASSIC 110 7X0,5
1119802 OLFLEX CLASSIC 110 2X0,75
1119803 ÖLFLEX CLASSIC 110 3X0,75
1119804 ÖLFLEX CLASSIC 110 4X0,75
1119805 ÖLFLEX CLASSIC 110 5X0,75
1119807 ÖLFLEX CLASSIC 110 7X0,75
1119812 OLFLEX CLASSIC 110 12X0,75
1119852 ÖLFLEX CLASSIC 110 2X1
1119853 ÖLFLEX CLASSIC 110 3X1
1119854 ÖLFLEX CLASSIC 110 4X1
1119855 ÖLFLEX CLASSIC 110 5X1
1119857 ÖLFLEX CLASSIC 110 7X1
1119862 OLFLEX CLASSIC 110 12X1
1119868 OLFLEX CLASSIC 110 18X1
1119870 OLFLEX CLASSIC 110 20X1
1119902 OLFLEX CLASSIC 110 2X1,5
1119903 OLFLEX CLASSIC 110 3X1,5
1119904 OLFLEX CLASSIC 110 4X1,5
1119905 OLFLEX CLASSIC 110 5X1,5
1119907 OLFLEX CLASSIC 110 7X1,5
1119912 OLFLEX CLASSIC 110 12X1,5
1119952 OLFLEX CLASSIC 110 2X2,5
……
