Model: Control cable sheath material - Polyvinyl chloride (PVC)
Conductor material: Bare copper, multi-core
Material shape: Round wire, Product certification: CCC

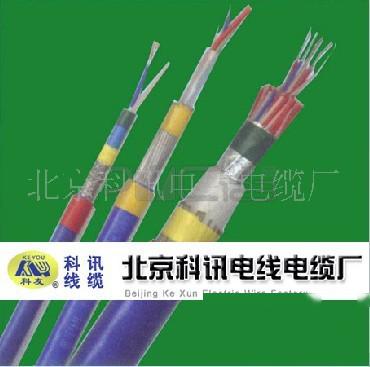

KVV cable
Polyvinyl chloride insulated control cable
I. Product standards This product is manufactured according to GB9330 "Plastic Insulated Control Cables", IEC60227 "Polyvinyl Chloride Insulated Cables with Rated Voltage of 450/750V and Below", and IEC60502 "Plastic Insulated Power Cables with Rated Voltage of 1-30kV and Accessories", etc.
II. Scope of application The polyvinyl chloride insulated and sheathed control cable is suitable for wiring in control, signal, protection, and measurement systems with a rated voltage of 450/750V and below or 0.6/1kV and below.
III. Usage characteristics
● The rated frequency voltage Uo/U is 450/750V or 0.6/1kV.
● The allowable long-term working temperature for the cable conductor is 70℃.
● The ambient temperature during cable installation should not be lower than 0℃. If the ambient temperature is below 0℃, the cable should be preheated.
● The recommended minimum bending radius for the cable is as follows: For unarmored cables, it should not be less than 6 times the outer diameter of the cable; For armored or copper tape shielded cables, it should not be less than 12 times the outer diameter of the cable; For shielded flexible cables, it should not be less than 6 times the outer diameter of the cable.
Beijing Kexun Wire and Cable Factory specializes in the production of BV, BVR, RV, ZR-RVS, ZR-BV, NH-BV, BLX, BXR, YZ, YC, RVV, RVS, RVB, BVV, RVVP, BLV, BXVW, JKYJ, JKLYJ, DT, DTL, GT, SBH, MYQ-0.3/0.5, MY-0.38/0.66, MYP-0.38/0.66, MYP-0.66/0.24, HBGYV2*1.2, HBYV2*1*0.5, HBYV4*1*0.5, LGJ, SYV, KVV, KVV22, NH-KVV, NH-KVV22, NHKVVP, HYA, KVVP, KVVP2, GYXTW, GYSTS, GYXTW53, KVV22, KVV2-22, GYXTS, NH-YJV, NH-VV, VLV, NH-YJV22, NH-VV22, VLV22, DJYPA, DJYVP, DJYPVP, DJYP2V, DJYVP2, DJYP2VP2, DJYP3V, DJYVP3, DJYP3VP3, YJV, YJV22 and other wires, power cables, control cables, a full range of weak current cables, electronic computer cables, rubber sheathed cables, coaxial cables, control shielded cables, flame retardant, fire-resistant, and special cables. There are 20 major categories and more than 5000 specifications, widely used in industries such as electricity, metallurgy, petroleum, chemical, national defense, power plants, coal mines, transportation, ports, and construction. The factory has passed ISO9001-2000 quality management system certification, ISO14000 environmental management system certification, CCC, CQC certification, and obtained the industrial product production license issued by the National Quality Supervision, Inspection and Quarantine. It is also the only enterprise in the Beijing area to obtain CQC certification for flame retardant and fire-resistant cables, and has been repeatedly awarded the honors of "National Product After-Sales Service User Satisfaction Enterprise" and "National Quality Inspection Stable Qualified Products".
