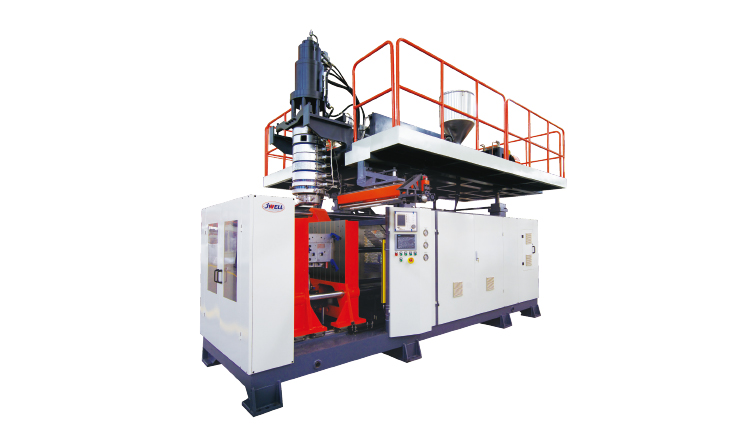

● Suitable for producing various stacking drums and wide-mouth drums with a capacity of 15-100L for chemical packaging
● Uses high-output extrusion system, storage-type die head
● Optional liquid level line extrusion system
● Optional hydraulic servo control system
| Model | Name | Unit | BM30 | BM50 | BM100 |
|---|---|---|---|---|---|
| Max product volume | Maximum product capacity | L | 30 | 50 | 100 |
| Dry cycle | Machine dry cycle | Pc/h | 600 | 450 | 360 |
| Die head structure | Die head structure | Storage Type Accumulating Type | |||
| Main screw diameter | Main screw diameter | mm | 80 | 90 | 100 |
| Max plasticizing capacity (PE) | Maximum plasticizing capacity | kg/h | 120 | 180 | 190 |
| Driving motor | Feeding motor power | Kw | 37 | 45 | 55 |
| Accumulating volume | Accumulator volume | L | 5.2 | 6.2 | 12.8 |
| Oil pump motor power | Oil pump motor power | Kw | 15 | 18.5 | 22 |
| Clamping force | Clamping force | KN | 280 | 400 | 600 |
| Space between platen | Platen opening distance | mm | 400-900 | 450-1200 | 500-1300 |
| Max.mould size | Maximum mold size | mm | 550*650 | 700*850 | 800*1200 |
| Heating power of die head | Die head heating power | Kw | 20 | 28 | 30 |
| Platen size W*H | Platen size | mm | 740*740 | 880*880 | 1020*1000 |
| Machine dimension L*W*H | Machine overall dimensions | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 |
| Machine weight | Machine total weight | T | 12 | 13.5 | 16 |
| Total power | Total installed power | Kw | 95 | 110 | 135 |
| Note: The information listed above is for reference only; the production line can be designed according to customer requirements. Note: The information provided above is for reference only and can be customized according to customer requirements. | |||||
