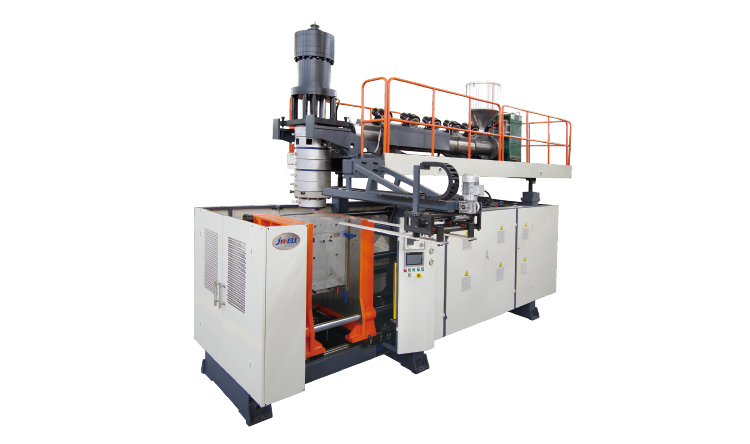

JWZ-BM30, 50, 100, 160 Hollow Molding Machine
Plastic Machinery-Blow Molding Machine-Other Blow Molding Machines
Expand
Product Content
Category
Plastic Machinery-Blow Molding Machine-Other Blow Molding Machines
JWZ-BM30, 50, 100, 160 Hollow Molding Machine

JWZ-BM30, 50, 100, 160 Hollow Molding Machine

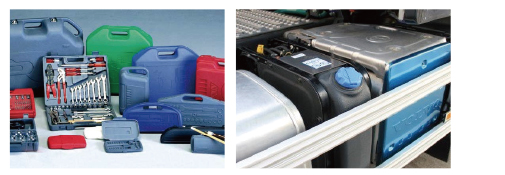

·Suitable for producing various specifications of automotive urea tanks, tool kits, car seats, ducts, guide plates, bumpers, spoilers, and other products

·Features a high-output extrusion system and an accumulator-type die head

·Depending on the raw material conditions, it can be equipped with the optional JW-DB single-station hydraulic screen changer system

·Custom mold plate dimensions are available based on product size

·Optional hydraulic servo control systems

·Optional packaging, robotic arms

ModelNameUnitBM30BM50BM100BM160
Max product volumeMaximum Product VolumeL3050100160
Dry cycleDry CyclePc/h600450360300
Die head structureDie Head StructureAccumulating Type
Main screw diameterMain Screw Diametermm8090100100
Max plasticizing capacity (PE)Maximum Plasticizing Capacitykg/h120180190240
Driving motorFeeding Motor PowerKw37455590
Accumulating volumeAccumulator Cylinder CapacityL5.26.212.818
Oil pump motor powerHydraulic Pump Motor PowerKw1518.52222
Clamping forceClamping ForceKN280400600800
Space between platenPlaten Clearancemm400-900450-1200500-1300500-1400
Max.mould sizeMaximum Mold Sizemm550*650700*850800*1200900*1450
Heating power of die headDie Head Heating PowerKw20283030
Platen size W*HPlaten Sizemm740*740880*8801020*10001120*1200
Machine dimension L*W*HMachine Dimensionsm4.3*2.2*3.55.6*2.4*3.85.5*2.5*4.07*3.5*4
Machine weightTotal Machine WeightT1213.51620
Total powerTotal Installed PowerKw95110135172
Note: The information listed above is for reference only, and the production line can be designed according to customer requirements.
