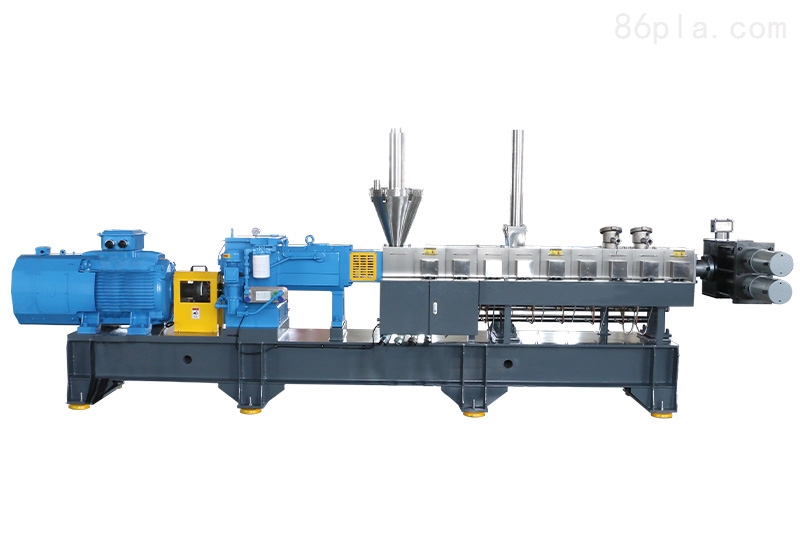

Brief Description:Industrial wood-plastic screw granulator is mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.
Industrial Wood-Plastic Screw GranulatorFeatures:
This production line integrates mixing, conveying, feeding, and extrusion, achieving automated continuous operation with high production efficiency.
2. Compact structure, small footprint and space, can be installed flat.
3. The production process implements segmented closed-loop temperature control, with the internal mixer, feeder, and extruder each having their own heating and cooling systems, controlling their respective temperatures according to process requirements.
4. The feeding mechanism adopts a dual-propeller design, featuring strong material intake capability. It is particularly suitable for extrusion and pelletizing of lump materials directly from the internal mixer.
5. The barrel and screw are both made of high-quality 38CrMoAIA alloy steel, which has been nitrided for high hardness, wear resistance, and corrosion resistance.
6. The die head adopts a manual screen changing or quick non-stop screen changing mechanism to improve production efficiency.
7. The electrical control system adopts advanced PLC control technology, combined with multiple inverters, enabling high-precision, wide-range speed adjustment for feeding, extrusion, cutting, and other multi-machine operations according to process requirements. It also features full-process interlocking, audio-visual fault alarms, and other function controls, ensuring a comprehensive and reliable system.
Regularly clean the oil and dust on the surface of the pelletizer motor. If the operating environment is harsh with a lot of dust, it is recommended to clean the motor at regular intervals of a few days to ensure the cleanliness and smooth operation of the electric motor.
2. Inspect the coupling of the granulator's transmission section to check for any hard damage or wear. A damaged coupling can lead to many hazards, so it should be replaced in time to effectively prevent numerous accidents.
3. Check the position of the fixed screws and see if there is any loosening. If loose, stop the operation, and the staff should tighten them promptly to prevent accidents.
4. After a period of use, the bearings of the pelletizer should be cleaned in time, and the lubricating grease and machine oil should be replaced. The frequency of cleaning and replacement should be determined based on the operating time of the motor. Generally, the lubricating grease and machine oil should be cleaned and replaced after the pelletizer motor has been running for about half a year.
