Plastic Auxiliary Machinery-Feeding/Mixing Equipment-Metering System

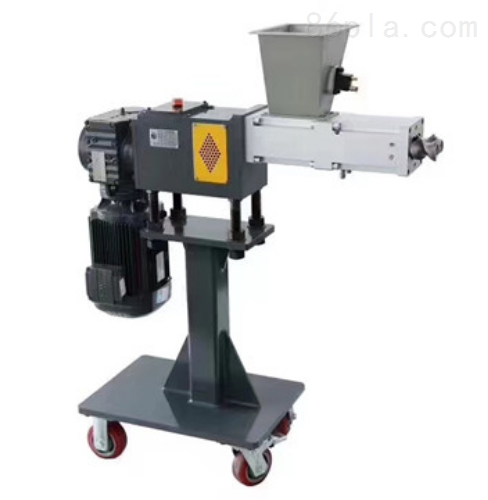

Brief Description:The industrial side feeding system is designed for adding color masterbatches and other additives. Some systems also have metering functions. The control system that requires metering functions is more complex. In contrast, a simple injection addition function is relatively straightforward, achieved by driving a small screw (a welded part will suffice) with a geared motor. The outer wall can be made of seamless steel pipe, and the speed can be adjusted via a variable frequency drive.
Industrial side feeding systemMaintenance Key Points:
1. For material batching and metered feeding, to ensure uniform and stable feeding and prevent material from flowing freely, it should be installed horizontally. For continuous feeding of general materials, it can be installed at a 10° downward incline. For sticky materials and those with higher moisture content, it can be installed at a 15° downward incline.
2. After installation, a clearance of 20mm should be left for movement, and it should be level horizontally. The hanging device should use a flexible connection.
3. Before the no-load test, all bolts should be tightened once, especially the foundation bolts of the vibrating electromagnet. After continuous operation for 3-5 hours, they should be retightened. During the test run, both vibrating motors must rotate in the same direction.
4. During the feeding process, the amplitude, current, and noise stability should be checked frequently; if any abnormalities are detected, the machine should be stopped immediately for handling.
5. The electromagnetic bearing should be lubricated once every 2 months, and during the high-temperature season, it should be lubricated once a month.
Industrial side feeding systemCommon Faults:
Check the control panel of the equipment to see if there are any issues, such as with the parameters of the feeder, the timing of suction and discharge. If there is a problem here, it may not be able to suction materials normally, and adjustments should be made promptly to resolve the issue.
2. Check the pneumatic pump to see if its compressed air source pressure meets the relevant regulations. In most cases, the air source pressure for a pneumatic pump is 6-7 MPa. If the pressure does not meet the requirements, you should check whether the air supply line needs to be replaced.
3. The inability to properly draw in material may also be due to disassembly activities of the machine, where air leaks occur at the clamp between the top cover and the barrel, thus preventing normal material drawing operations.
4. Open the top cover, remove the filter plate, and observe if there is too much dust on the filter core or if there are any clumps. These issues can lead to improper suction. To resolve this, simply clean it with compressed air.
