Plastic Auxiliary Machinery-Feeding/Mixing Equipment-Metering System

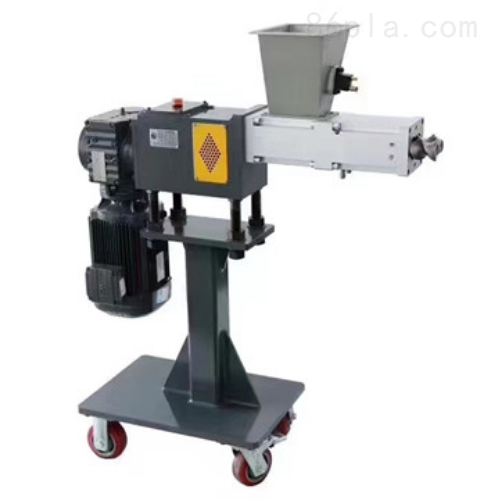

Brief description:The industrial plastic extrusion side feeder is equipped with a multi-orifice gas-extracting isolation device, which connects to external vacuum equipment to extract gases from the material. For feed-restricted materials, it can increase the feeding amount by three times. By optimizing the screw structure in the feeding area according to the characteristics of the product, both output and economic benefits can be further improved.
Industrial plastic extrusion side feederCommon Malfunctions:
Check the control panel of the equipment to see if there are any issues, such as whether the parameters of the feeder, the suction and discharge times, are correct. If there is a problem here, it might not be able to suck in material normally, and changes should be made promptly to resolve the issue.
2. Check the pneumatic pump to see if its compressed air source pressure meets the relevant regulations. In most cases, the air source pressure for a pneumatic pump is 6-7 MPa. If the pressure does not meet the requirements, check whether the air supply line needs to be replaced.
3. The inability to properly draw in material may also be due to the disassembly and reassembly of the machine, resulting in air leakage between the top cover and the cylinder clamp, thus preventing normal material drawing operations.
4. Open the top cover, remove the filter plate, and observe whether there is too much dust or any clumping on the filter element. These issues can lead to improper suction. To resolve this, simply clean it with compressed air.
Industrial plastic extrusion side feederMaintenance Key Points:
1. For material feeding and metering, to ensure uniform and stable feeding and prevent material from flowing freely, it should be installed horizontally. For continuous feeding of general materials, it can be installed at a 10° downward angle. For sticky materials and those with high moisture content, it can be installed at a 15° downward angle.
2, After installation, a clearance of 20mm should be left for movement, and it should be level horizontally. The suspension device should use a flexible connection.
3. Before the no-load test, all bolts should be tightened once, especially the foundation bolts of the vibrating electromagnet. After continuous operation for 3-5 hours, they should be retightened. During the test run, both vibrating motors must rotate in the same direction.
4. During the feeding process, the amplitude, current, and noise stability should be checked frequently. If any abnormalities are detected, the machine should be stopped immediately for handling.
5. The electromagnetic bearing should be lubricated once every 2 months, and it should be lubricated once a month during the high-temperature season.
